Cut-Out Outside Worktop

CutoutOutsideWorktopBoard

Position of the cut-out outside the worktop.

Notification level: ℹ

Key	Value
ID	CutoutOutsideWorktopBoard
Translation key	cutouts_out_of_worktop_rule_title cutouts_out_of_worktop_rule_error_message

Behavior

This rule checks if the cut-out is completely inside the worktop board in order to prevent the user from creating an invalid kitchen.

---

Trigger Conditions

It is triggered if the cut-out is partially or completely outside the worktop board. The application warns to modify the position of the cut-out.

---

Illustration

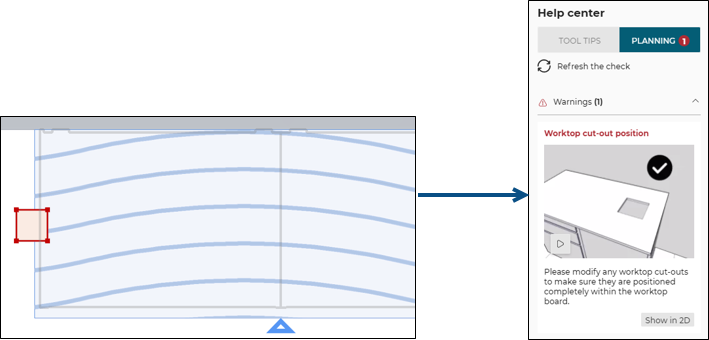

The cut-out is partially outside the worktop board, the rule is triggered and informs the user to modify the position of the cut-out. An animation is displayed to guide the user through the changes.

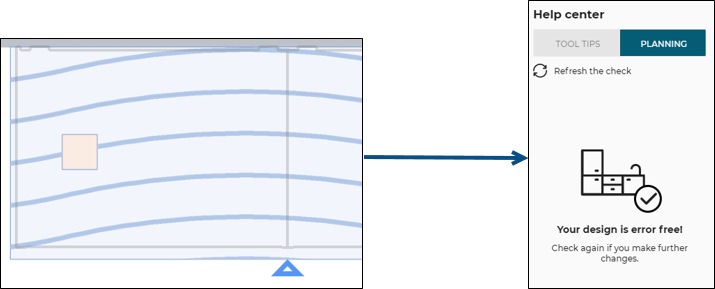

Once user has moved the cut-out inside the worktop board, the design is error free.
