Edge-Edge and Worktop Compatibility

Check Rule​

EdgeEdgeCompatibilityRule

Compatibility of edge finishes with the worktop configuration.

Notification level: ⚠

KeyValue
IDEdgeEdgeCompatibilityRule
Translation key (inner corner)edge_arc_compatibility :{ title }
edge_edge_compatibility.inner_corner_incompatibility
Translation key (outer corner)edge_arc_compatibility :{ title }
edge_edge_compatibility.outer_corner_incompatibility
Translation key (joint)edge_arc_compatibility :{ title }
edge_edge_compatibility.joint_incompatibility

Behavior​

This rule checks if the edge finishes are compatible with other edge finishes in the current worktop configuration, in order to prevent the user from creating an invalid kitchen.

Trigger Conditions​

It is triggered if an edge finish is not compatible with another edge finish for the current worktop configuration. The application warns to modify the edge finish of this worktop board.

Overload Parameter​

Key nameTypeDefault valueDescription
finishesobject–An object containing all the edge-edge rules you need to define. See the sample below. Mandatory.

Sample:

In the overloads sample below, the mentioned `rule1 is the name of the rule that contains the information about the edge compatibility. However, the user can put whatever s/he wants.

In addition, edge1 and edge2 are the mandatory fields that indicate the ID of the product edge finish that needs to define the compatibility.

{
    "finishes":
    {
        "rule1": {
            "edge1": "14169",
            "edge2": "14169",
            "innerAllowed": true,
            "jointAllowed": true,
            "outerAllowed": true
        },
        "rule2": {
            "edge1": "14170",
            "edge2": "14169",
            "innerAllowed": true,
            "jointAllowed": true,
            "outerAllowed": true
        },
        "rule3": {
            "edge1": "15719",
            "edge2": "14169",
            "innerAllowed": false,
            "jointAllowed": false,
            "outerAllowed": false
        },
        "rule4": {
            "edge1": "14170",
            "edge2": "14170",
            "innerAllowed": true,
            "jointAllowed": true,
            "outerAllowed": true
        },
        "rule5": {
            "edge1": "14170",
            "edge2": "15719",
            "innerAllowed": false,
            "jointAllowed": false,
            "outerAllowed": false
        },
        "rule6": {
            "edge1": "15719",
            "edge2": "15719",
            "innerAllowed": false,
            "jointAllowed": false,
            "outerAllowed": false
        }
    }
}

Illustration​

Case 1 – Check edge finish with outer corner

The current edge finish of outer corner of this worktop board is incompatible with another edge finishes, the rule is triggered and warns the user to change the type of the edge finish.

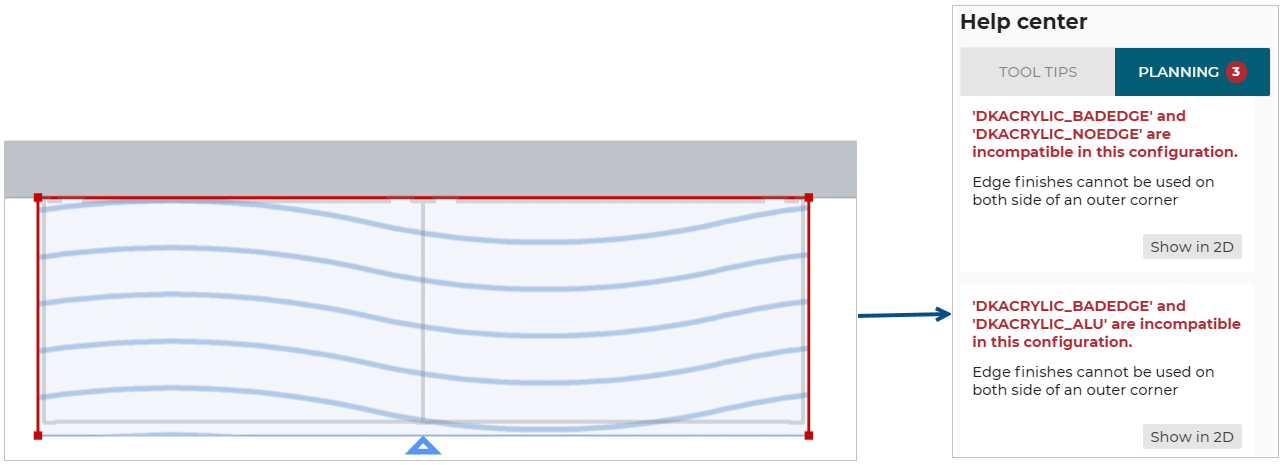

Outer corner incompatible with edge finish

Once the user has changed the type of the edge finish for a compatible value (in this case DKACRYLIC_NOEDGE, the overload value) the design is error free.

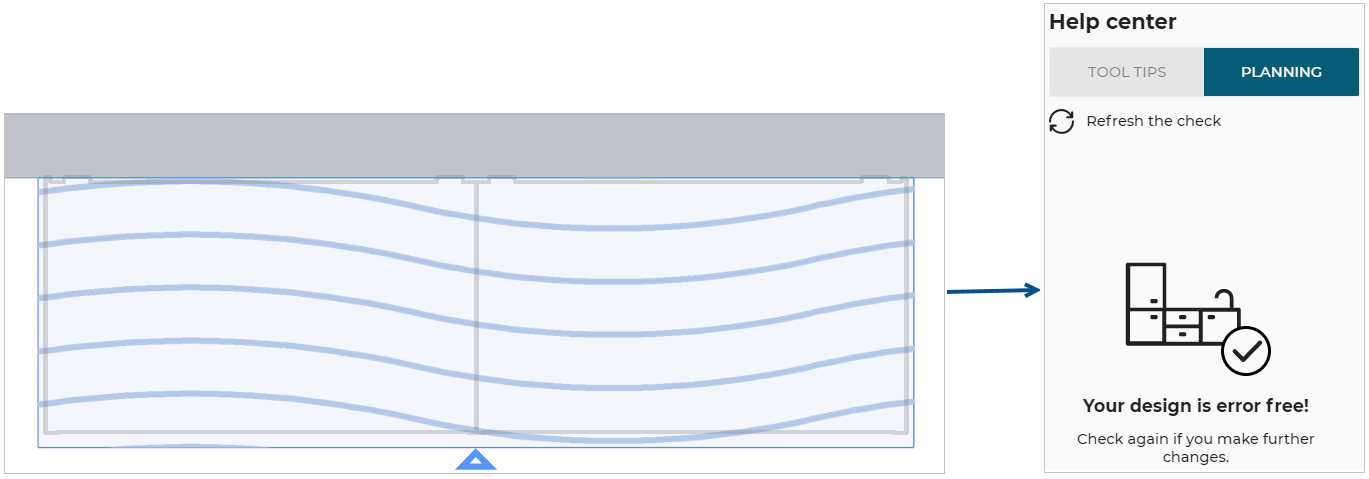

Change edge finish

Case 2 – Check with edge finish with joint

The current edge finishes added on both sides of the joint is incompatible, the rule is triggered and warns the user to change the type of the edge finish.

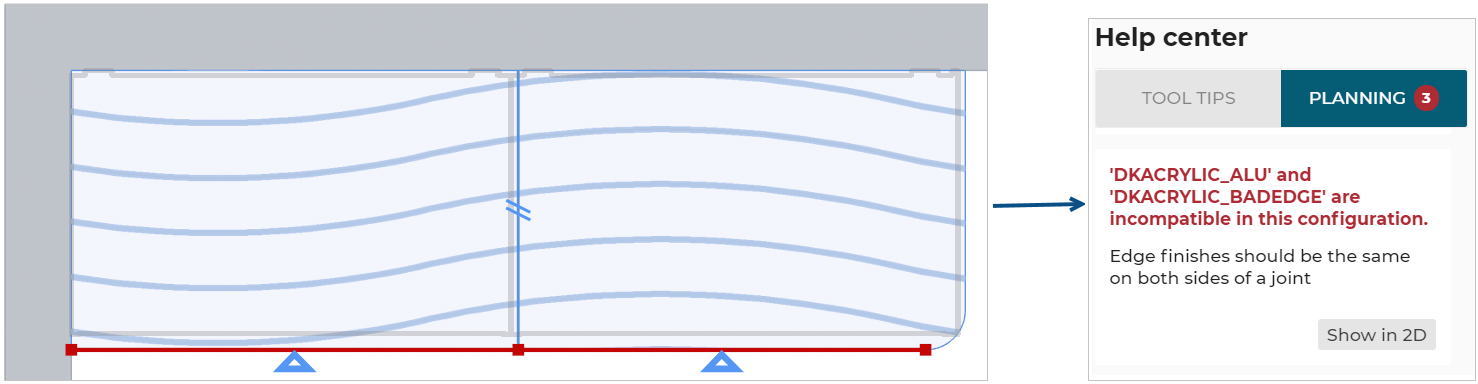

Joint incompatible with edge finish

Once the user has changed the type of the edge finish for a compatible value (in this case DKACRYLIC_NOEDGE that is the overload value) the design is error free.

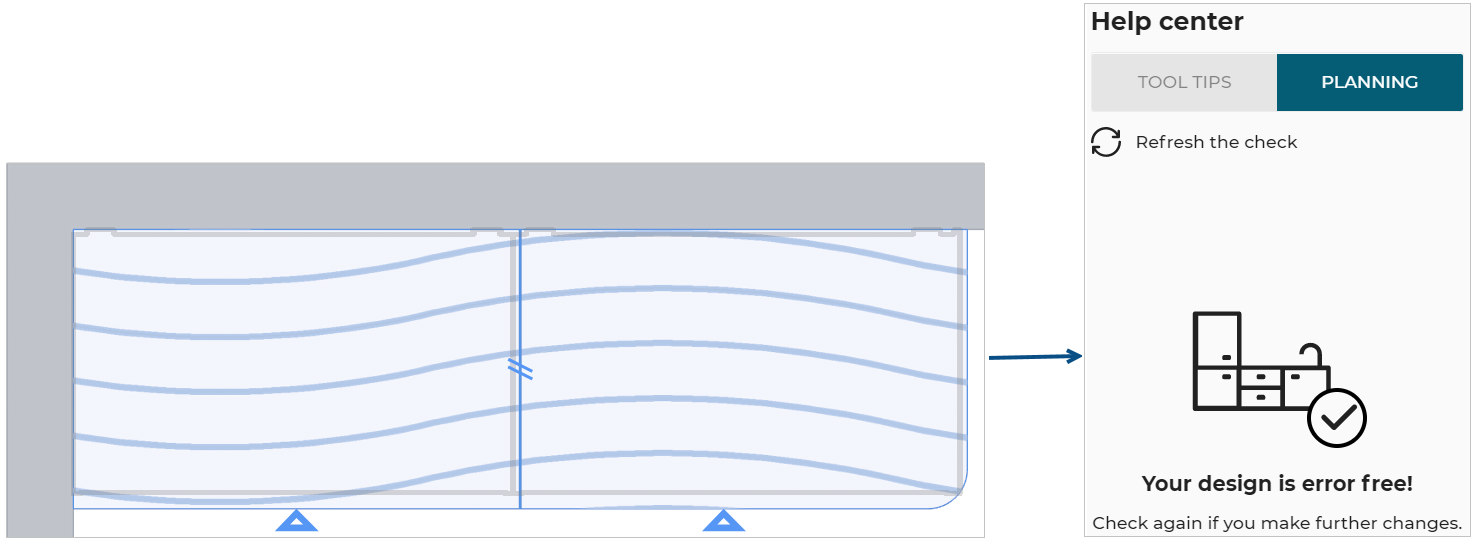

Change edge finish
