Maximum Worktop Depth for Triple Cut

TripleCutMaxDepthRule

Maximum worktop depth for a triple cut.

Notification level: ℹ

Key	Value
ID	TripleCutMaxDepthRule
Translation key	min_depth_triple_cut_title min_depth_triple_cut_error_message

Behavior

This rule checks if worktop depth is sufficient or not when a triple cut is created on it, in order to prevent the user from creating an invalid kitchen.

---

Trigger Conditions

It is triggered if the maximum depth of the triple cut is more than 2/3rd of the depth of the worktop. The application warns to modify the dimensions of cut.

---

Illustration

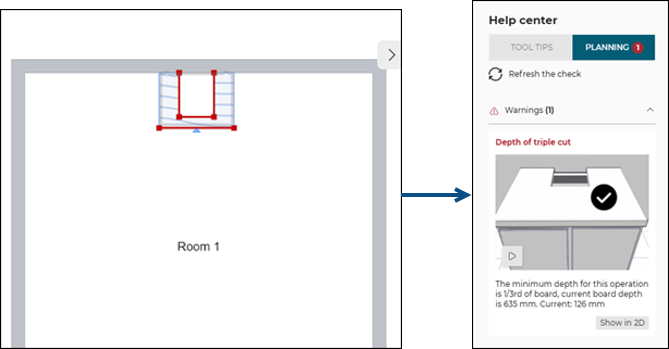

A triple cut is added to the edge of a worktop with depth more than 2/3rd of the depth of the worktop, the rule is triggered and informs the user to reduce the depth of the triple cut. An animation is displayed to guide the user through the changes.

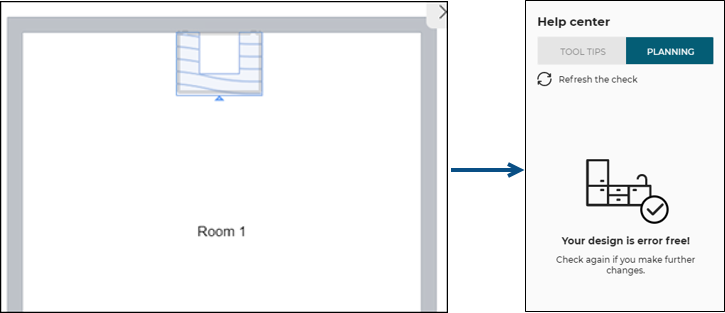

Once the user has reduced the depth of the triple cut, the design is error free.
