Waterfall Edge and Base Cabinet
WaterfallRule
Waterfall edge is not in contact with side of base cabinet.
Notification level: ℹ
| Key | Value |
|---|---|
| ID | WaterfallRule |
| Translation key | waterfall_rule_title waterfall_rule_error_message |
Behavior
This rule checks if the waterfall is touching the side of a base cabinet after editing the worktop in order to prevent the user from creating an invalid kitchen.
Trigger Conditions
It is triggered if the waterfall does not touch the side of a base cabinet after editing the worktop. The application recommends to modify the waterfall extension.
Illustration

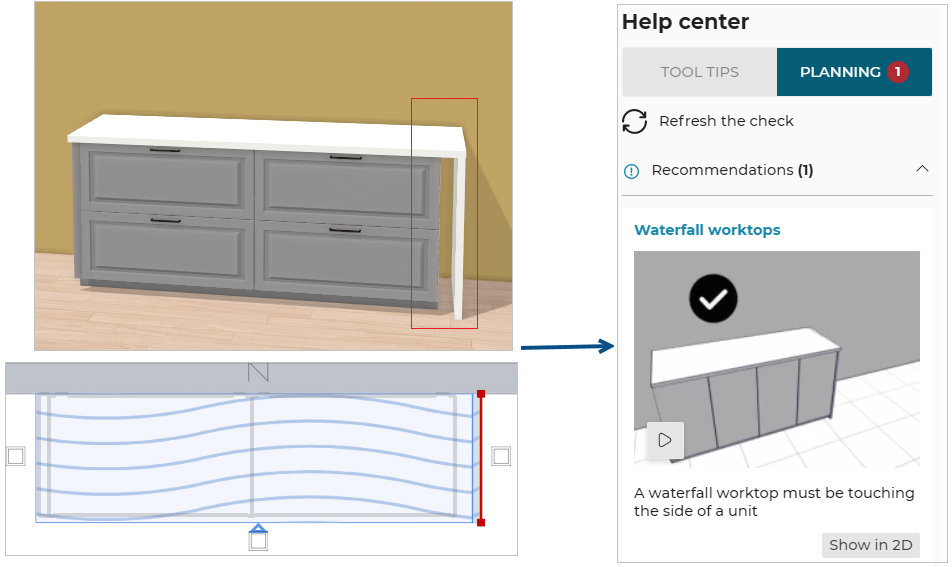

The waterfall is not touching the side of a base cabinet, the rule is triggered and informs the user to modify the waterfall extension. An animation is displayed to guide the user through the changes.

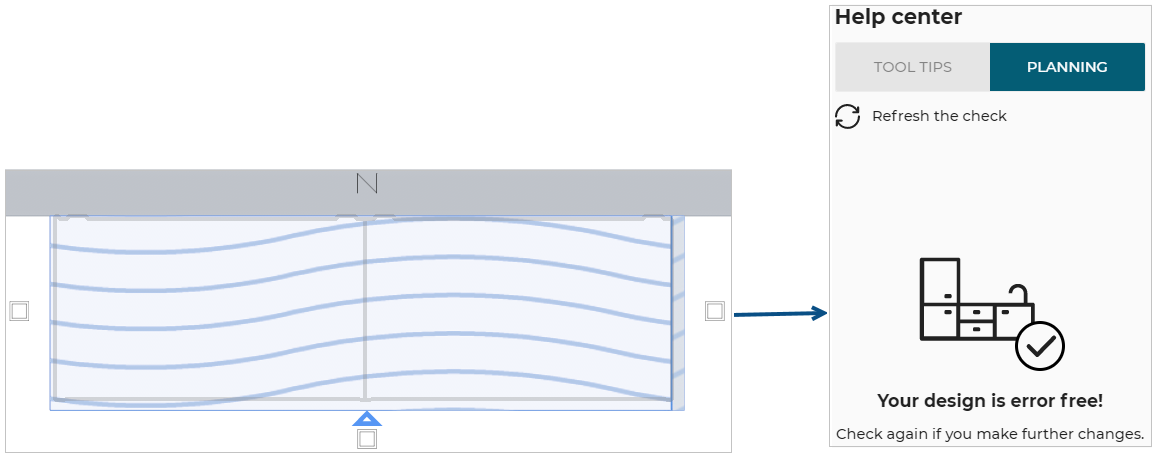

Once the user has modified the waterfall extension which now touch the side of a base cabinet, the design is error free.
