Waterfall Collision with Base Cabinet
WaterfallCollisionRule
Waterfall edge is in collision with a base cabinet.
Notification level: ℹ
| Key | Value |
|---|---|
| ID | WaterfallCollisionRule |
| Translation key | waterfall_collision_rule_title waterfall_collision_rule_error_message |
Behavior
This rule checks if the waterfall is colliding a base cabinet after editing the worktop in order to prevent the user from creating an invalid kitchen.
Trigger Conditions
It is triggered if the waterfall is colliding a base cabinet after editing the worktop. The application recommends to modify the waterfall extension.
Illustration

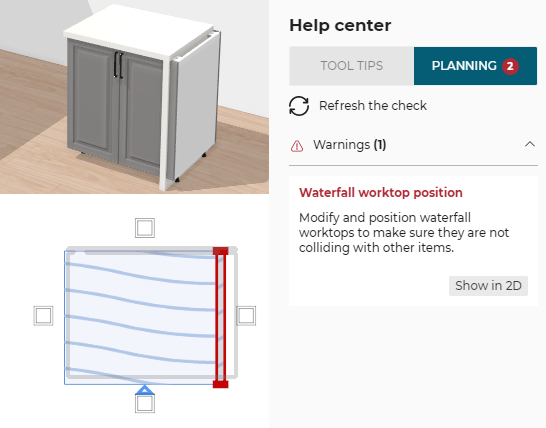

The waterfall is colliding a base cabinet, the rule is triggered and informs the user to modify the waterfall extension.

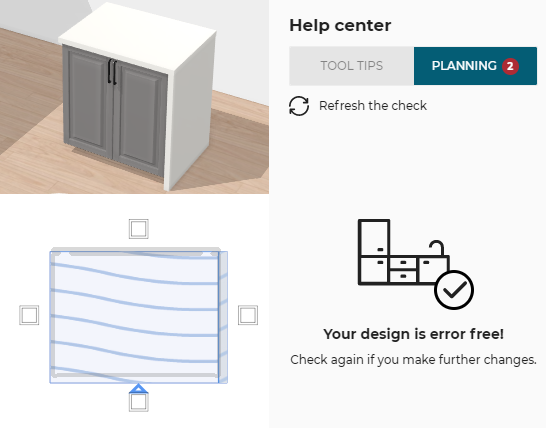

Once the user has modified the waterfall extension which now does not collide a base cabinet, the design is error free.
