Decorative Leg and Decorative Plinth
FurnitureDecoLegRule
Decorative leg relating to decorative plinth.
Notification level: Not applicable
| Key | Value |
|---|---|
| ID | FurnitureDecoLegRule |
| Translation key | Not applicable |
Behavior
This rule sets the correct decorative leg configuration when applying a related decorative plinth.
➡️️ For more information, see the decorative plinth documentation 🔗.
Trigger Conditions
Every time a decorative plinth is applied, to which decorative legs are attached, the application calculates the decorative leg configuration based on its position and type. Every time the position of the furniture changes, the rule will re-calculate the correct leg option.
Overload Parameter
This rule has no overloads. A plinth is considered to have associated decorative legs (and thus will trigger this rule) if the plinth product has the parameter regularPlinth defined on it.
Illustration
Since there are many different cases of leg configuration, the principle of the rule will be illustrated with some basic cases.

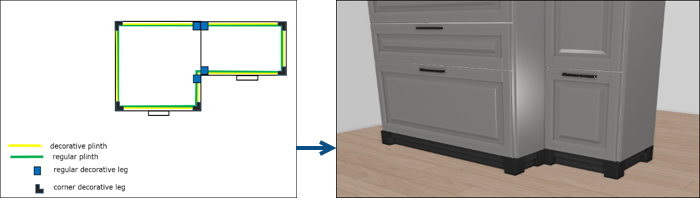

Case 1 – Combination with corner
Case 2 – Combination along a wall
