Wallpanel with Edge Finish

Check Rule​

WallPanelEdgeFinishRule

Wallpanel edges with edge finish.

Notification level: ⚠

KeyValue
IDWallPanelEdgeFinishRule
Translation keywallpanel_edge_finish_rule_title
wallpanel_edge_finish_rule_error_message

Behavior​

This rule checks if all wallpanel edges are with an edge finish, in order to prevent the user from creating an invalid kitchen.

Trigger Conditions​

It is triggered if a wallpanel edge is not with an edge finish. The application warns to modify the edge with an edge finish to suit the wallpanel configuration.

Illustration​

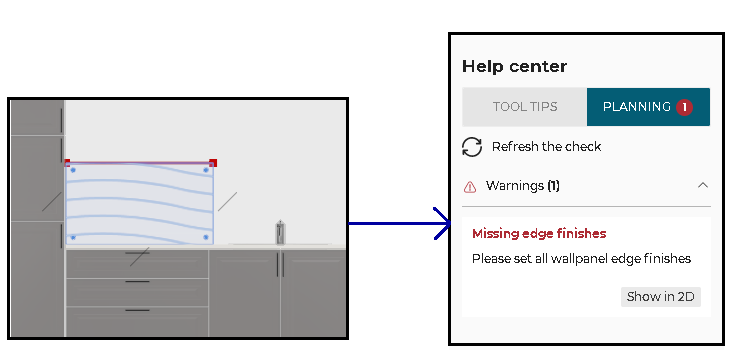

A wallpanel edge is not with an edge finish for the configuration, the rule is triggered and informs the user to add an edge finish for the missing edge.

Missing edge finish

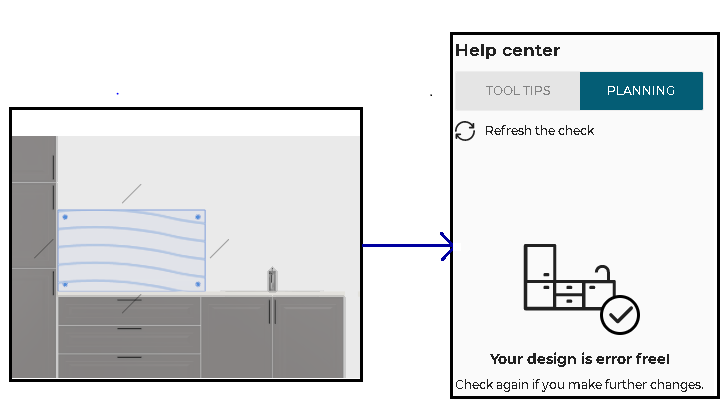

Once the user has added the edge finish to the missing edge the design is error free.

With edge finish
