Wallpanel Outside Room
WallPanelOutsideRoomRule
Wall panel inside a wall or outside project.
Notification level: ℹ
| Key | Value |
|---|---|
| ID | WallPanelOutsideRoomRule |
| Translation key | wallpanel_outside_room_rule_title wallpanel_outside_room_rule_error_message |
Behavior
This rule checks if a part of wall panel is inside a wall or is extended through a wall outside the project in order to prevent the user from planning an invalid kitchen.
Trigger Conditions
It is triggered if a part of a wall panel is inside a wall or is extended through a wall outside the project. The application recommends to modify the position of the wall panel.
Illustration
Case 1 – Wall panel outside the project

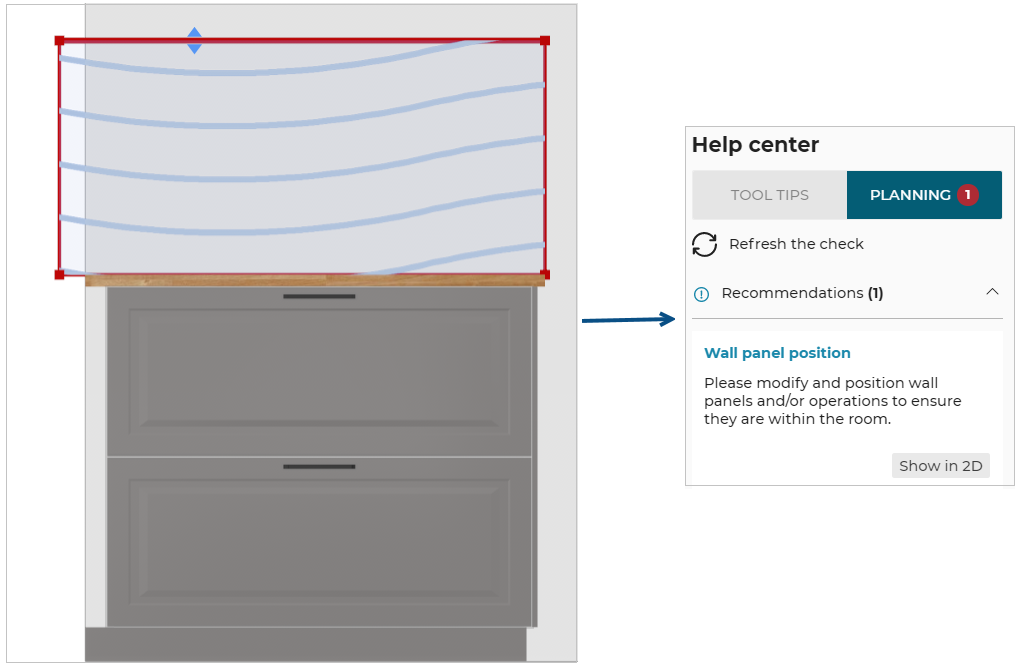

If the wall panel is extended through a wall and is outside the project, the rule is triggered and recommends the user to modify the position of wall panel to ensure that it is within the room.

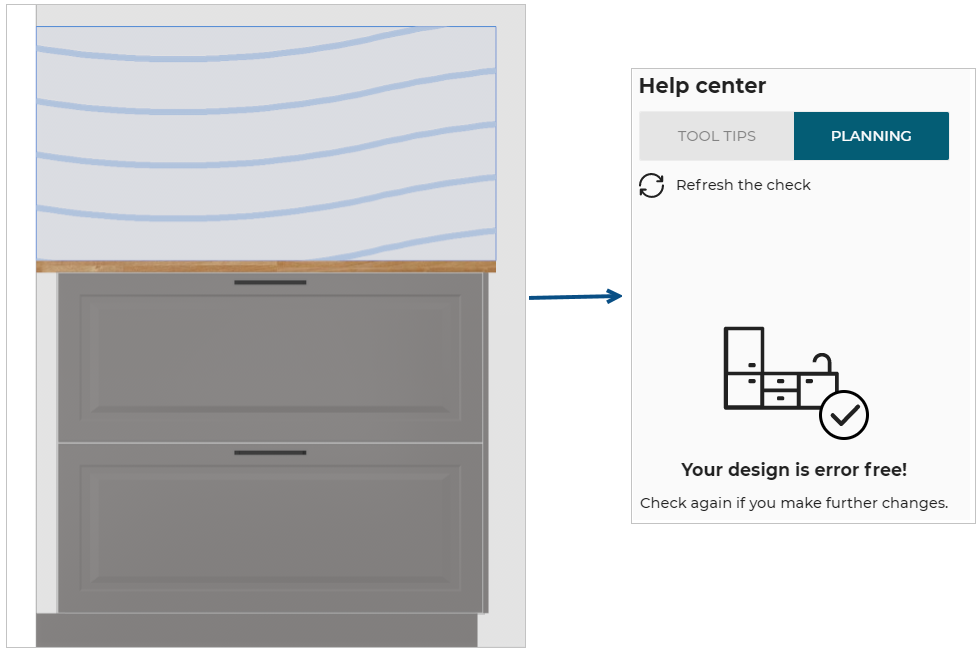

In this case, user needs to position the wall panel within the room. The design is now error free.
Case 2 – Wall panel inside a wall

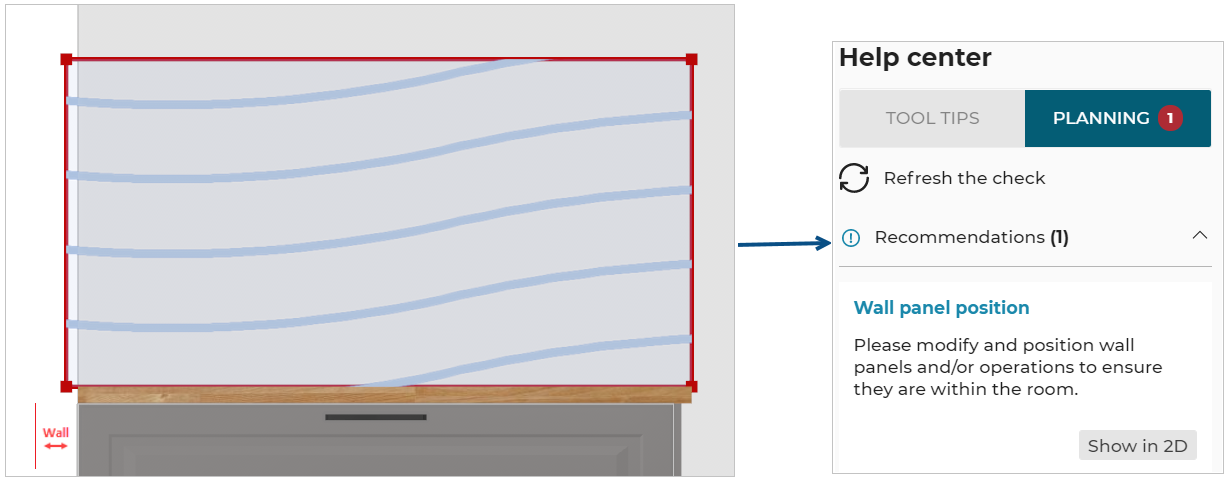

If the wall panel is inside a wall, the rule is triggered and recommends the user to modify the position of wall panel to ensure that it is within the room.

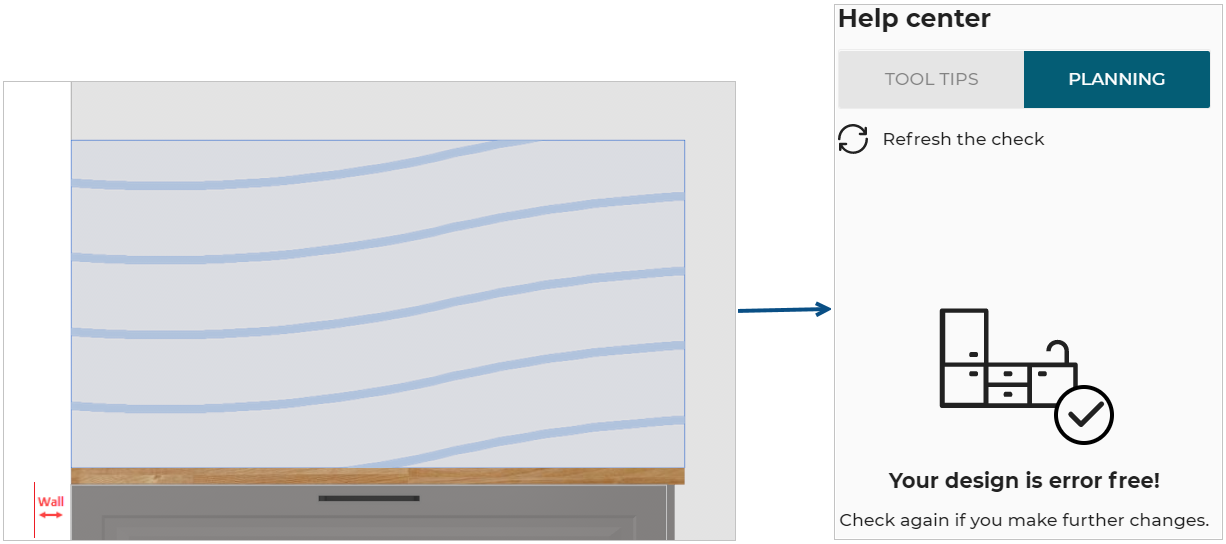

In this case, user needs to position the wall panel within the room. The design is now error free.
After refreshing the check of the Help center, user finds that there is no error for this case.
Case 3 – Wall panel over a room separator

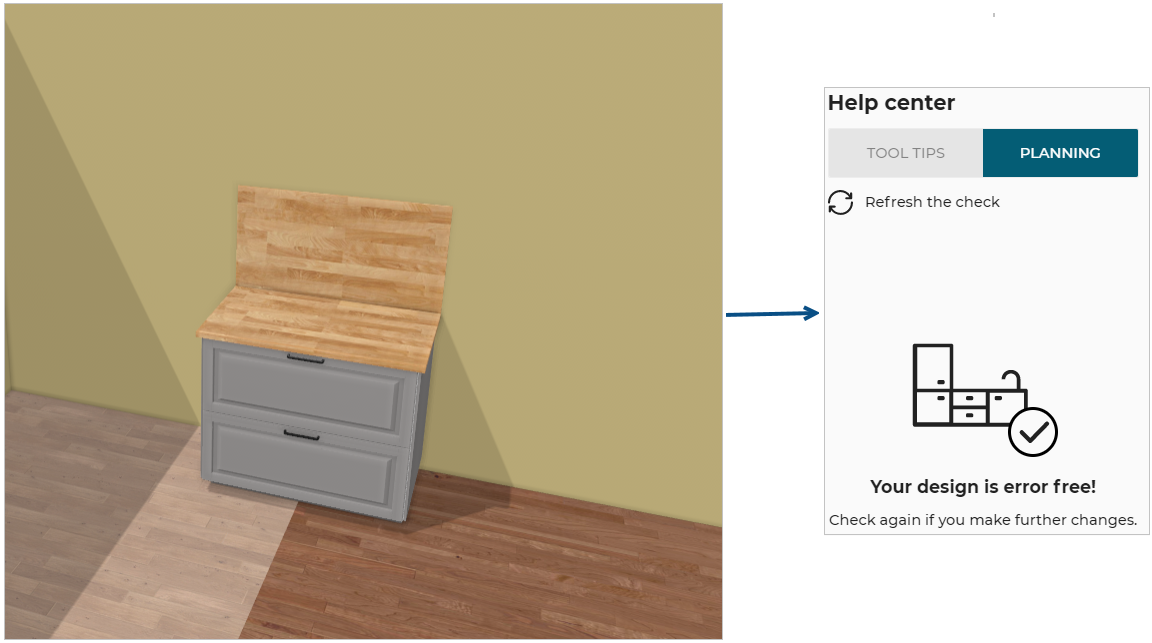

If the wall panel is over a room separator, the business rule is not triggered and no notification is displayed in Help Center. This is allowed, since room separator is not a physical wall.
Case 4 – Wall panel inside the inner wall

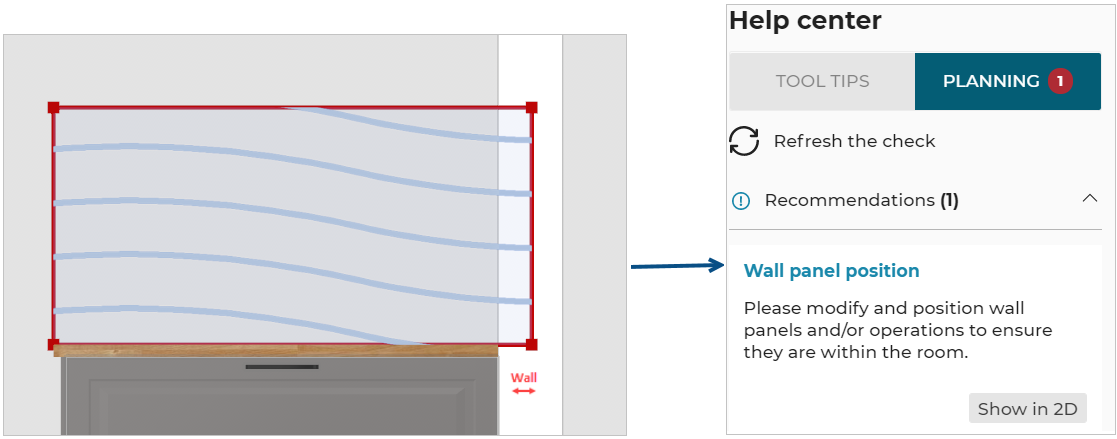

If the wall panel is inside the inner wall, the rule is triggered and recommends the user to modify the position of wall panel to ensure that it is within the room.

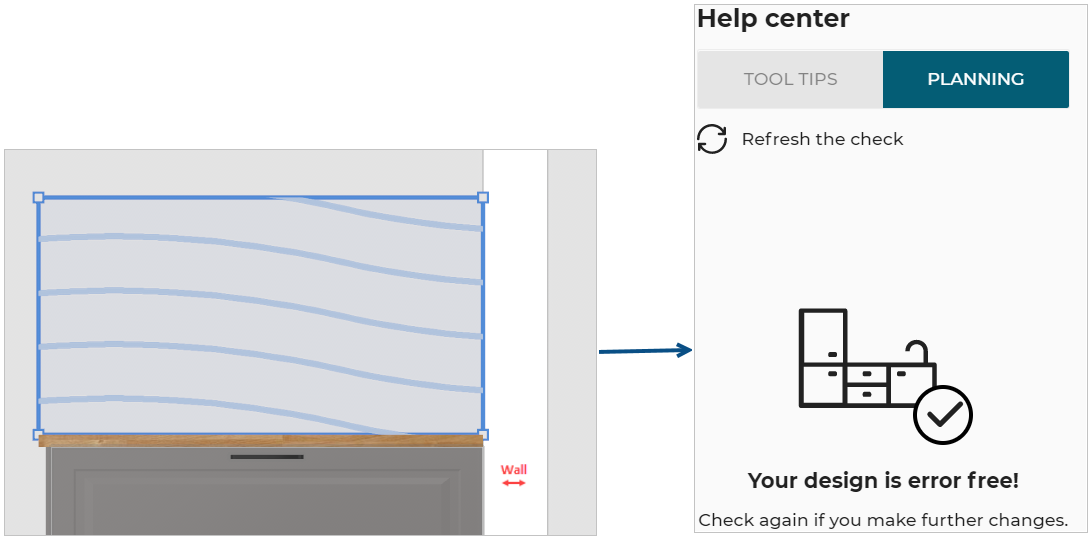

In this case, user needs to position the wall panel within the room. The design is now error free.
