Wallpanel Overlap
WallPanelOverlap
Wall panel overlaps with another wall panel.
Notification level: ⚠
| Key | Value |
|---|---|
| ID | WallPanelOverlapRule |
| Translation key | wallpanel_overlap_rule_title wallpanel_overlap_error_message |
Behavior
This rule checks if a part of a wall panel overlaps with a part of an other wall panel in order to minimize the wall panels dimensions needed and have a better pricing for the project.
Trigger Conditions
It is triggered if a part of a wall panel overlaps with a part of an other wall panel. The application warns to modify the dimension or the position of one of the wall panels.
Illustration

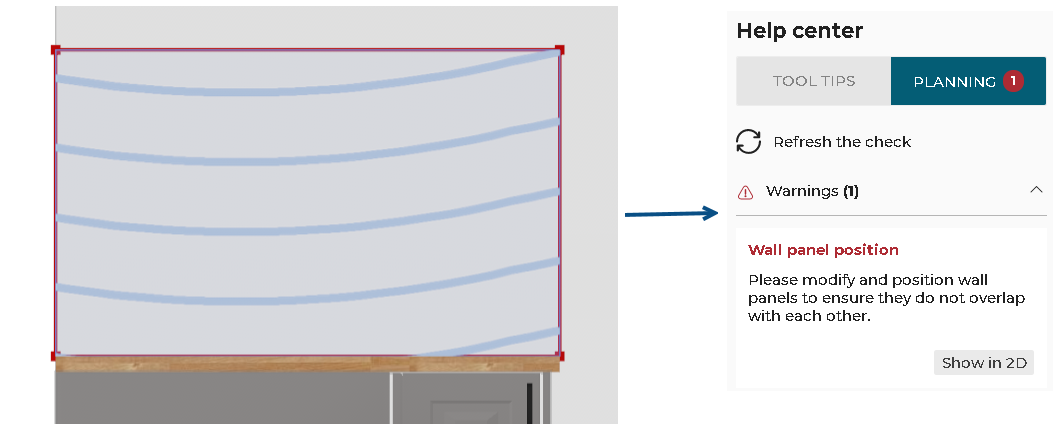

If the wall panel is extended through an other wall panel and overlap with it, the rule is triggered and warn the user to modify the dimension and/or position of one of the wall panel to ensure that it is not overlapping with the other one.

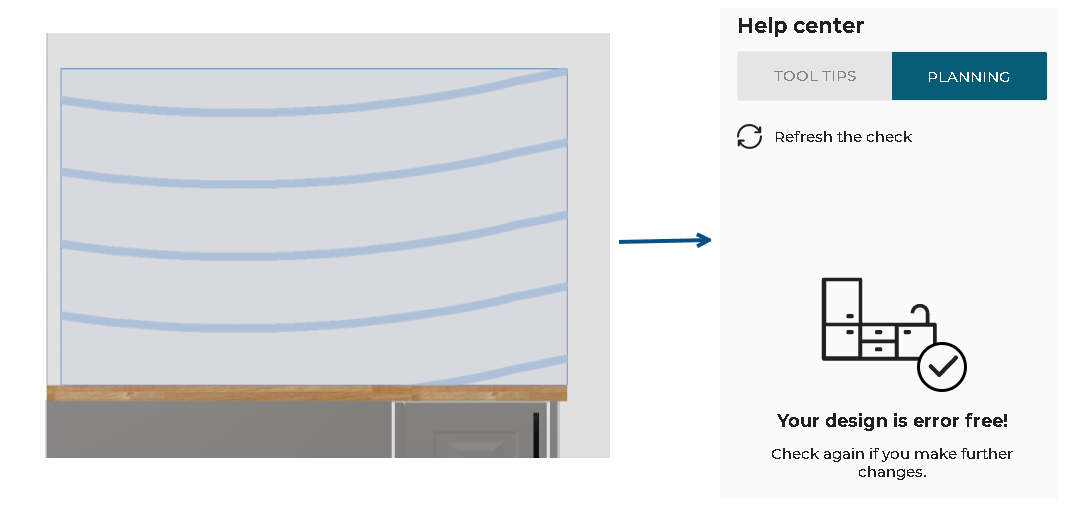

In this case, user needs to better position the wall panel or to change its dimension. The design is now error free.
