Worktop Intersecting with other Edges
WorktopInvalidShapeRule
Worktop edge intersecting with other edges.
Notification level: ⚠
| Key | Value |
|---|---|
| ID | WorktopInvalidShapeRule |
| Translation key | worktop_invalid_shape_rule_title worktop_invalid_shape_rule_error_message |
Behavior
This rule checks if worktop edges (one or several) are not intersecting with other edges in order to prevent the user from creating an invalid worktop.
Trigger Conditions
It is triggered if worktop edges (one or several) are intersecting with other edges. The application warns to modify the worktop shape without intersecting the edges.
Illustration

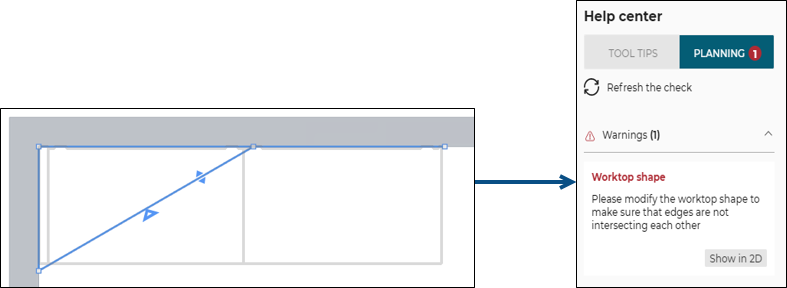

A worktop edge is interesting the other worktop edge in this configuration, the rule is triggered and informs the user to modify the worktop shape without intersecting the edges.

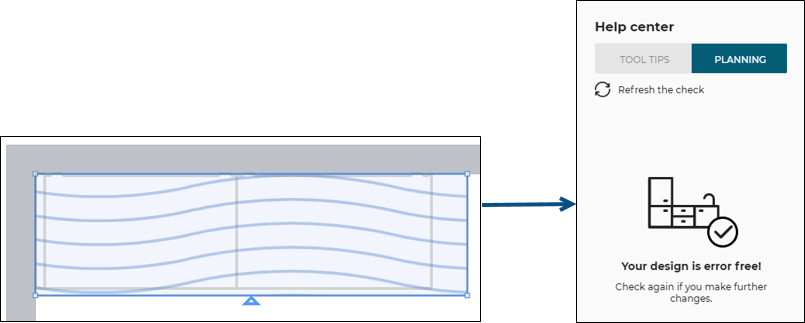

Once the user has modified the worktop shape to remove the intersection with other worktop edges the design is error free.
