Worktop Split Edge
WorktopSplitEdgeRule
Compatibility of edge finishes having worktop split.
Notification level: ⚠
| Key | Value |
|---|---|
| ID | WorktopSplitEdgeRule |
| Translation key | worktop_split_edge_rule_title worktop_split_edge_rule_error_message |
Behavior
This rule ensures that the final configuration of the worktops does not include a split edge if both sides of the edge are aligned and with the same edge finish.
Trigger Conditions
It is triggered if the edges of the worktop are split into two or more edges and two adjacent edge have the same edge finish.
Illustration

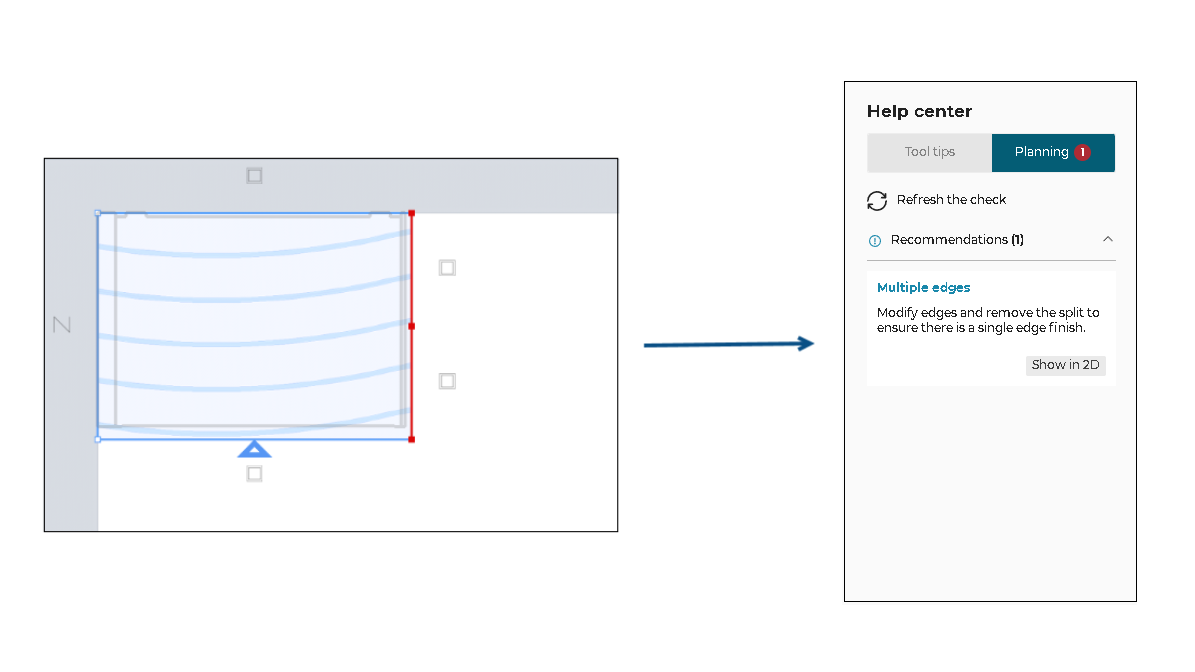

The current edge of the worktop board has been split into two edges and they have the same edge finish, the rule is triggered and informs the user to remove the edge split.

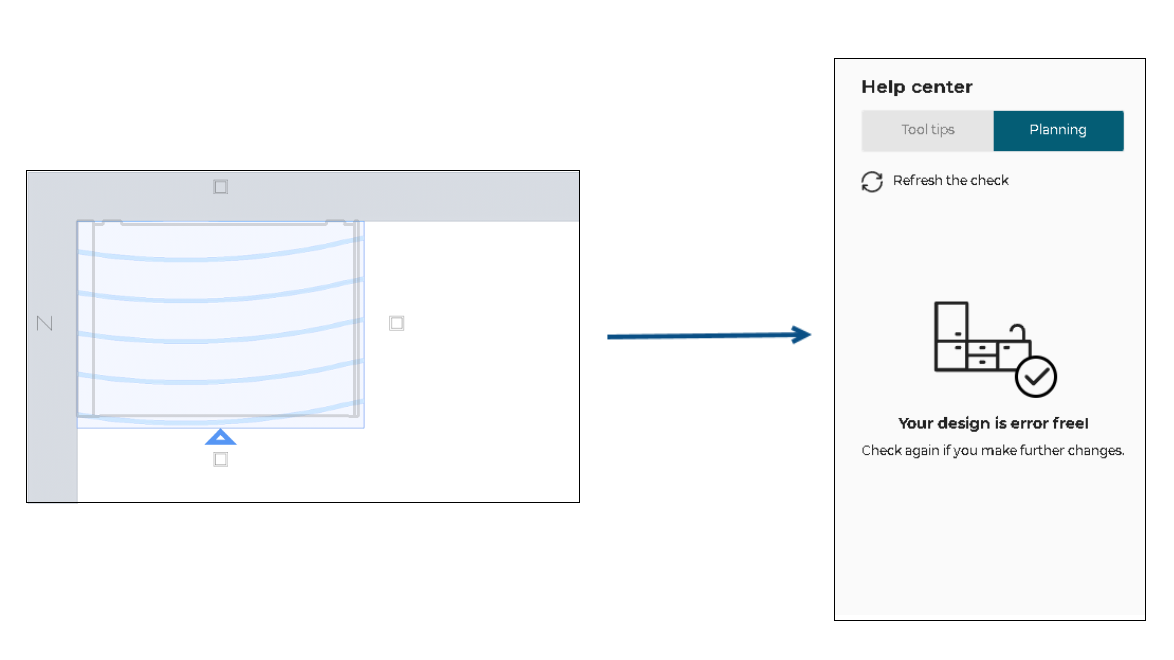

Once the user has removed the split from the edge, the design is error free.
