Grain Direction and Front Edge Compatibility

GrainFrontEdgeCompatibilityRule

Grain direction compatibility with the worktop front edge(s).

Notification level: ⚠

Key	Value
ID	GrainFrontEdgeCompatibilityRule
Translation key	grain_front_edge_compatibility_rule_title grain_front_edge_compatibility_rule_error_message

Behavior

This rule ensures consistency between front edge(s) and grain direction on each worktop board.

---

Trigger Conditions

It is triggered if the edges that are configured as front edges on each worktop board are not parallel to the grain direction.

---

Illustration

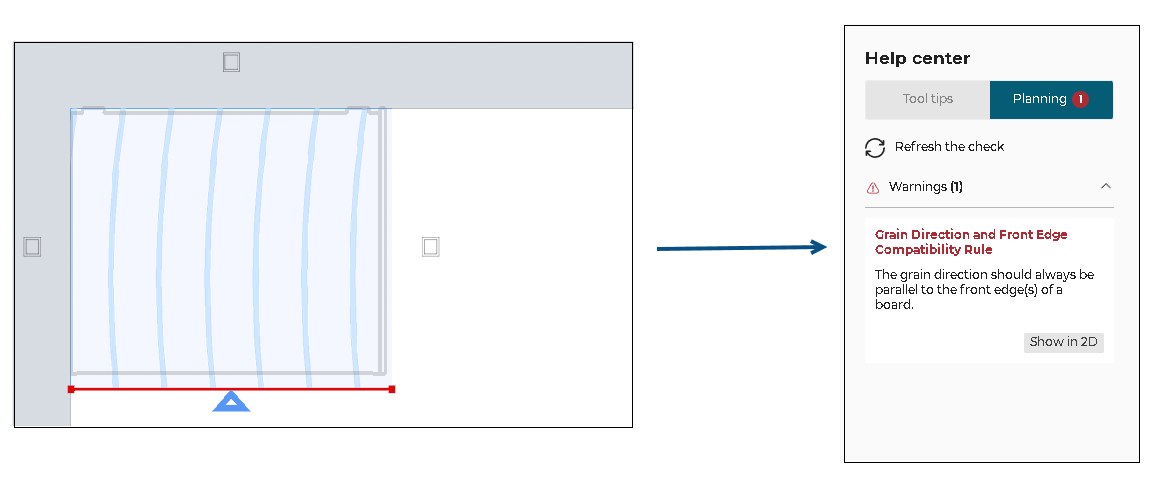

The current front edge of the worktop board is not parallel to the grain direction, the rule is triggered and informs the user to make front edge and grain direction consistent on the worktop board.

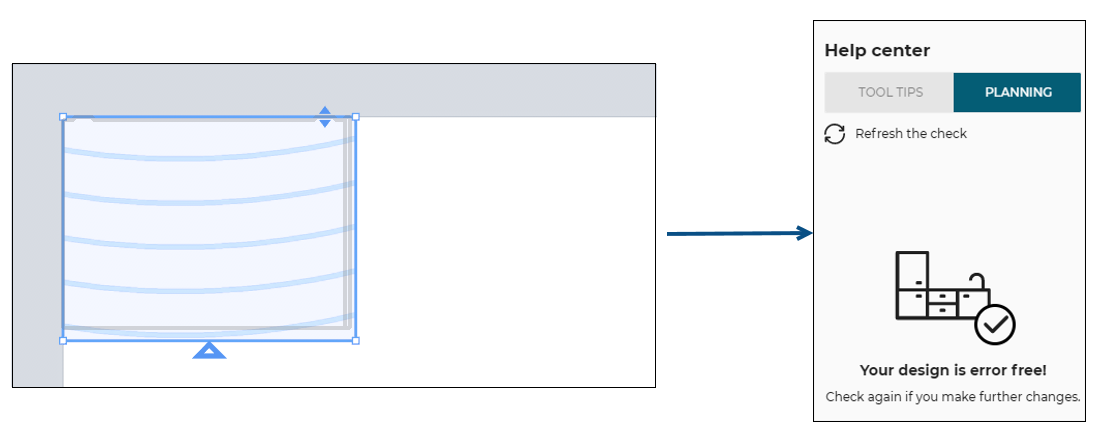

Once the user has changed the grain direction parallel to front edge the design is error free.
