Cooktop and High cabinet

CooktopHighCabinetRule

Distance between cooktop and a high cabinet.

Notification level: ⚠

Key	Value
ID	CooktopHighCabinetRule
Translation key	cooktop_sink_rule_title cooktop_sink_rule_error_message

Behavior

This rule checks the distance between a cooktop and a high cabinet.

---

Trigger Conditions

It is triggered if two products are closer than the minimum value.

---

Affected Products

The rule affects the products with:

• The closed tags HighCabinets or Cooktop
• The parameter cooktop

This information is mandatory in order to have a check on this kind of products.

---

Overload Parameter

Key name	Type	Default value	Description
minDistanceHighCabinet	number	150	The minimum distance in millimeters between a cut-out for a hob and high cabinet. Optional.
minDistFromHighCabinet	number	150	(Deprecated, use minDistanceHighCabinet) The minimum distance in millimeters between a cut-out for a hob and high cabinet. Optional.

For example:

{
    "minDistanceHighCabinet":150
}

---

Illustration

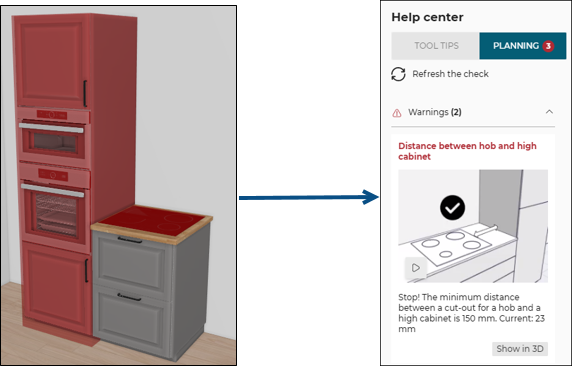

A cooktop is close to a high unit, the rule is triggered and informs the user to change the position of the cooktop. An animation is displayed to guide the user through the changes.

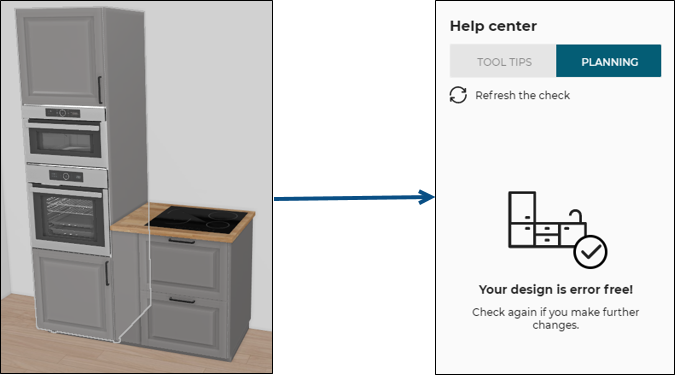

Once the user has moved the cooktop away from the high unit to a distance greater than or equal to 150 mm (the overload value in this example).

After clicking Refresh the check on the Help center, the design is now error free.
