Distance Between Oven and Wall
OvenRule
Distance between oven and wall.
Notification level: ℹ
| Key | Value |
|---|---|
| ID | OvenRule |
| Translation key | oven_rule_title oven_rule_error_message oven_rule_freestanding_error_message |
Behavior
This rule checks the distance between a freestanding or built-in oven and a wall in order to prevent the user from planning a dangerous kitchen.
A different minimum distance is applied depending on the type of appliance: a built-in oven and a freestanding oven each have their own parameter and their own default value.
Trigger Conditions
It is triggered if the distance between an oven and a wall is less than the distance parameter defined for its type, the rule is triggered and the application warns to move the oven to another position:
- Built-in oven:
minDistance. - Freestanding oven:
minDistanceFreestandingOvens.
The warning message displays the distance expected for the type of oven that is too close to the wall.
Affected Products
The products affected by this rule are:
- The oven cabinet with the closed tag
OvenCabinets. - One of the child product with the respective closed tag
Ovens. - The freestanding oven with the closed tag
FreestandingOvens, on the product itself or on one of its child products.
This information is mandatory in order to have a check on this kind of products.
Overload Parameter
| Key name | Type | Default value | Description |
|---|---|---|---|
minDistance | number | 50 | This parameter defines the necessary limit distance between a built-in oven and a wall. Optional. |
minDistanceFreestandingOvens | number | 300 | This parameter defines the necessary limit distance between a freestanding oven and a wall. Optional. |
distance | number | 50 | (Deprecated, use minDistance) This parameter defines the necessary limit distance between the oven and a wall. |
{
"minDistance":50,
"minDistanceFreestandingOvens":300
}
Illustration
An oven is close to a wall, the rule is triggered and informs the user to change the position of this oven. An animation is displayed to guide the user through the changes.

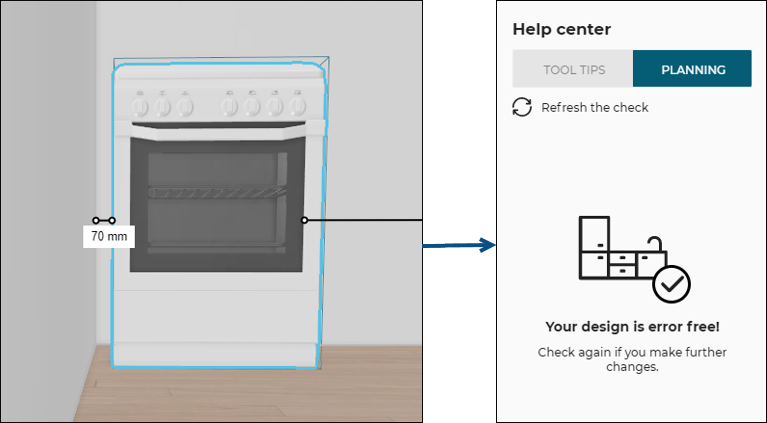

Once the user moves the oven away from the wall to a distance of at least 50mm (the overload value in this example):
After clicking Refresh the check on the Help center, the design is now error free.
