Full Depth Sink Thickness

FullDepthSinkThicknessRule

Worktop Thickness around a full depth sink.

Notification level: ℹ

Key	Value
ID	FullDepthSinkThicknessRule
Translation key	fulldepthsink_thickness_rule_title fulldepthsink_thickness_rule_error_message

Behavior

This rule checks the thickness of the worktops on the left and right sides of a full depth sink.

Trigger Conditions

It is triggered if the left or the right of the full depth sink is aligned with a worktop with a non compatible thickness.
The compatible thickness of a full depth sink is defined by the fullDepthThicknessCompatibility parameter.
Refer to sink parameters 🔗

Affected Products

The rule affects any sink product that has the parameter isFullDepth = true Refer to sink parameters 🔗

Overload Parameter

No overload parameter

Illustration

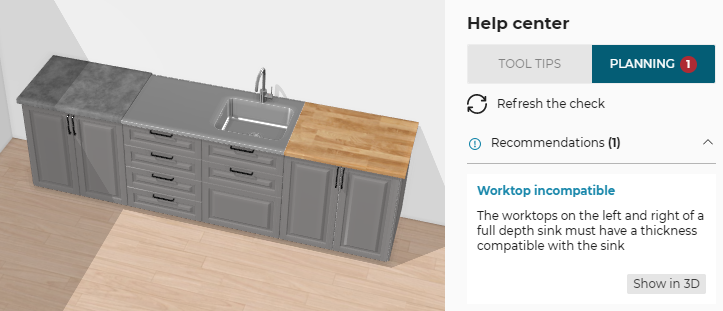

The worktop on the left side of the full depth sink is not compatible with the sink.

Once the user has changed the left worktop product.

After clicking Refresh the check on the Help center, the design is now error free.
