Distance Between Hob and Hood

HobHoodRule

Distance between a hob and a hood.

Notification level: ⚠

Key	Value
ID	HobHoodRule
Translation key	hood_hob_rule_title hood_hob_rule_error_message, hood_hob_rule_for_specific_case_error_message, hood_hob_rule_for_hood_freestanding_hob_with_gas_error_message,hood_hob_rule_for_hood_freestanding_hob_without_gas_error_message,hood_hob_rule_for_hood_cabinet_hob_with_gas_error_message,hood_hob_rule_for_hood_cabinet_hob_without_gas_error_message,hood_hob_rule_for_angled_hood_case_error_message

Behavior

This rule checks the distance between a hob and a hood in order to save the user from planning a dangerous kitchen.

---

Trigger Conditions

It is triggered if the distance between a hob and a hood is less than the minimum distance (in millimeters). The application warns to move the hood to another position.

---

Affected Products

The following information is mandatory in order to have a check on this kind of products.

In the most common case, the rule affects:

• Hoods having both a closed tag Hoods and a layout option with the values builtIn or freeStanding or freeStandingAngled.
• Hobs must have a closed tag Cooktops.

In the specific case of a built-in hood with fan, the rule affects:

• Hoods having the closed tag Hoods and a layout option with the value builtIn or freeStanding.
• Cooktops having a closed tag Cooktops and a energyType option with the values induction or ceramic or gas.

---

Overload Parameter

Key name	Type	Default value	Description
minDistanceHoodCabinet	object	650	This parameter defines the necessary limit distance between the hood and a hob. Mandatory.
minDistanceHoodCabinetWithFan	object	560	This parameter defines the necessary limit distance between the built-in hood with fan and a hob. Optional.
minDistFromHoodCabinet	object	650	(Deprecated, use minDistanceHoodCabinet) This parameter defines the necessary limit distance between the hood and a hob.
minDistFromHoodCabinetWithFan	object	560	(Deprecated, use minDistanceHoodCabinetWithFan) This parameter defines the necessary limit distance between the built-in hood with fan and a hob.
minDistanceHoodFreestandingHobWithGas	object	650	This parameter defines the necessary limit distance between the freestanding hood and a hob with gas.
minDistanceHoodCabinetWithFanHobWithGas	object	560	This parameter defines the necessary limit distance between the built-in hood with fan and a hob with gas.
minDistanceHoodFreestandingHobWithoutGas	object	650	This parameter defines the necessary limit distance between the freeStanding hood and a hob without gas.
minDistanceHoodCabinetWithFanHobWithoutGas	object	560	This parameter defines the necessary limit distance between the built-in hood with fan and a hob without gas.
minDistanceHoodAngled	object	650	This parameter defines the necessary limit distance between the angled hood and a hob.

For example:

{
   "minDistanceHoodCabinet":650,
   "minDistanceHoodCabinetWithFan":560,
   "minDistanceHoodFreestandingHobWithGas":650,
   "minDistanceHoodCabinetWithFanHobWithGas":560,
   "minDistanceHoodFreestandingHobWithoutGas":650,
   "minDistanceHoodCabinetWithFanHobWithoutGas":560,
   "minDistanceHoodAngled":650
}

---

Illustration

Case 1 – Common case

A hood is close to a hob, the rule is triggered and informs the user to change the position of this hood. An animation is displayed to guide the user through the changes.

Once the user has moved the hood away from the hob to a distance greater than or equal to 650 mm (the overload value in this example).

After clicking Refresh the check on the Help center, the design is now error free.

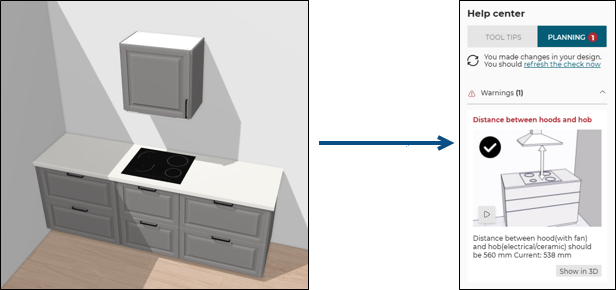

Case 2 – Built-in hood with fan

In the specific case of a built-in hood with fan, the rule checks the distance.

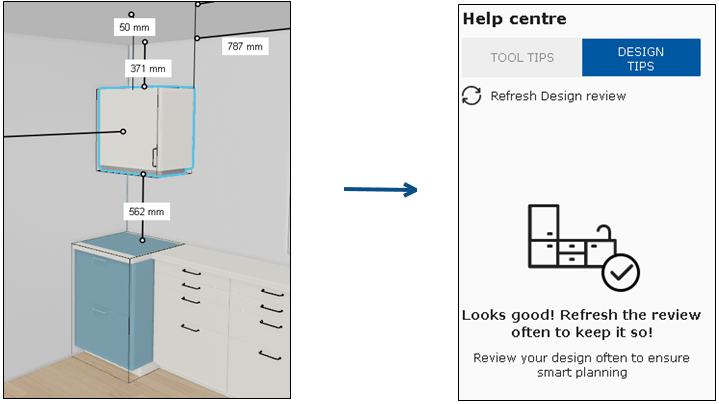

Once the user has moved the hood away from the hob to a distance greater than or equal to 560 mm (the overload value in this example).

After clicking Refresh the check on the Help center, the design is now error free.

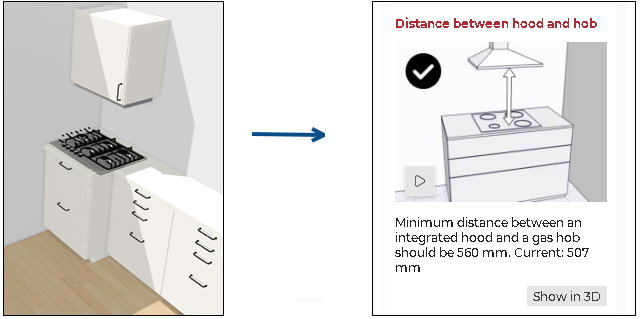

Case 3 – Built-in hood with fan with gas

In the specific case of a built-in hood with fan with gas, the rule checks the distance.

Once the user has moved the hood away from the hob to a distance greater than or equal to 560 mm (the overload value in this example).

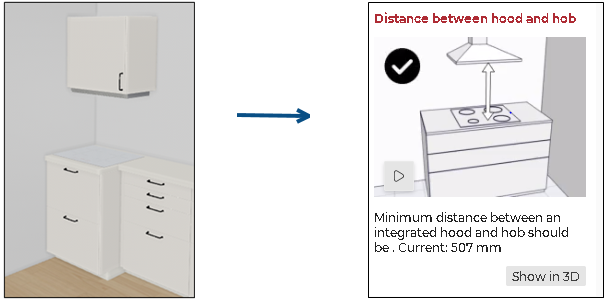

Case 4 – Built-in hood with fan without gas

In the specific case of a built-in hood with fan without gas, the rule checks the distance.

Once the user has moved the hood away from the hob to a distance greater than or equal to 560 mm (the overload value in this example).

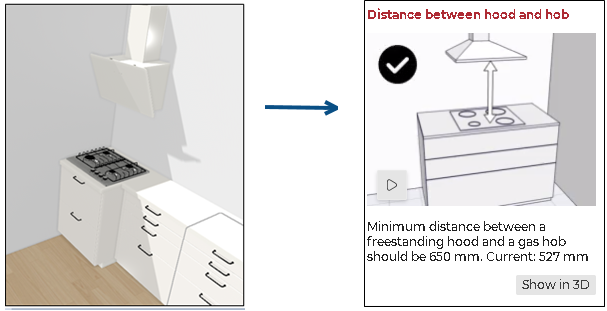

Case 5 – Freestanding hood with gas

In the specific case of a freeStanding hood with gas, the rule checks the distance.

Once the user has moved the hood away from the hob to a distance greater than or equal to 650 mm (the overload value in this example).

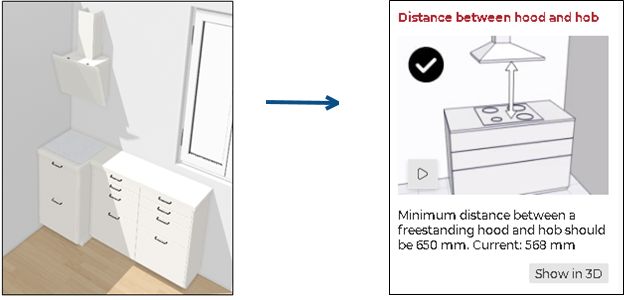

Case 6 – Freestanding hood without gas

In the specific case of a freeStanding hood without gas, the rule checks the distance.

Once the user has moved the hood away from the hob to a distance greater than or equal to 650 mm (the overload value in this example).

Case 7 – Angled hood case

In the specific case of a angled hood case, the rule checks the distance.

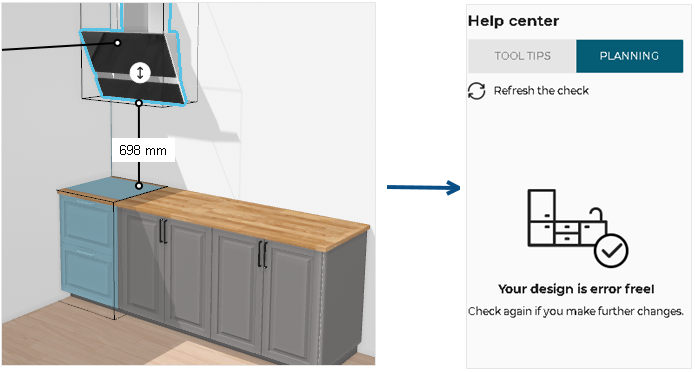

Once the user has moved the hood away from the hob to a distance greater than or equal to 650 mm (the overload value in this example).
