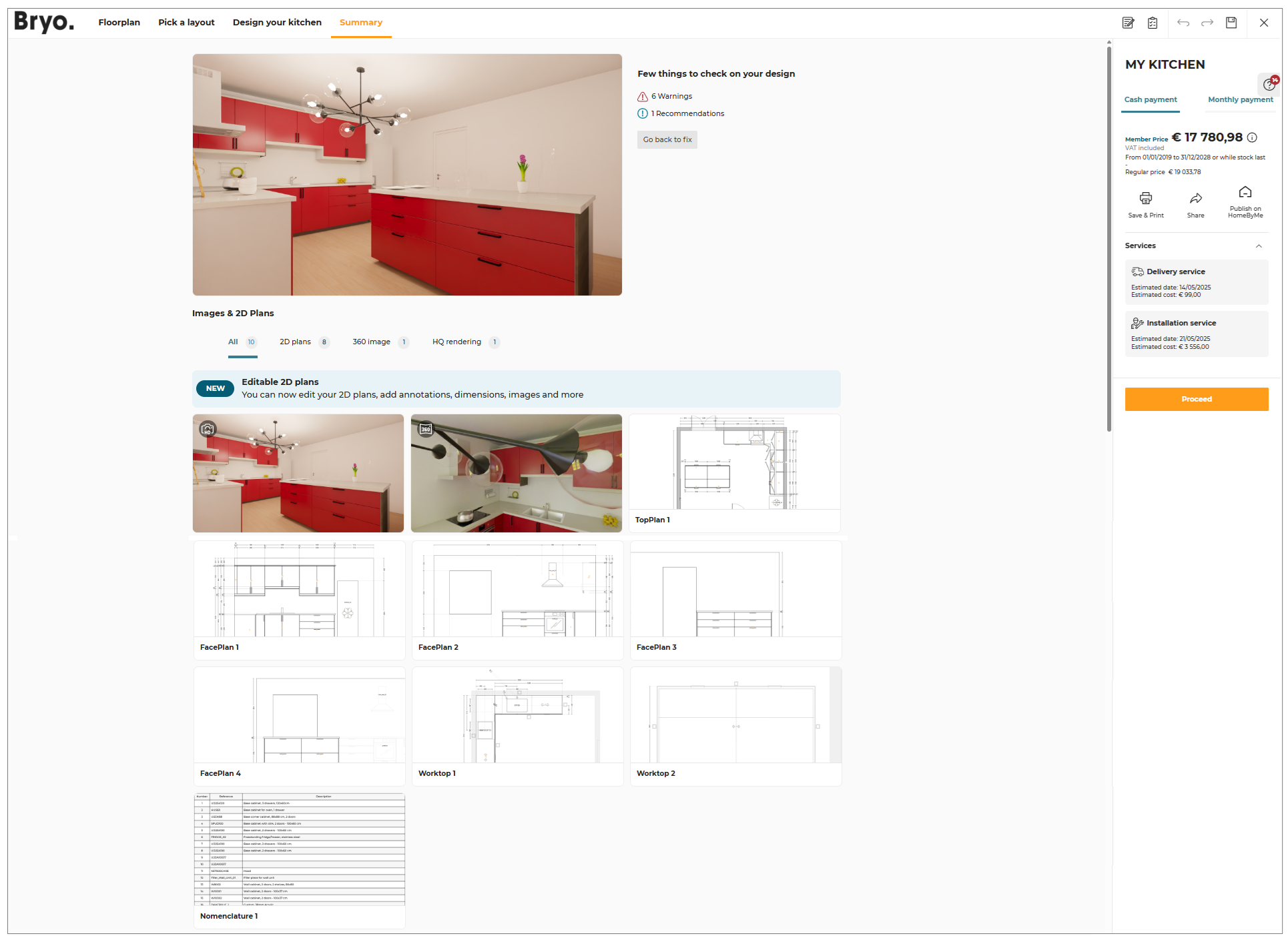

Summary

This is the fourth step in the application. It is the final summary of the kitchen after modifying it according to the user requirements. Users can go back to previous steps for modification.



Before proceeding to the summary step, it is recommended to save the project for the correct functioning of all options available in this step. However, many options in this step would require saving the project before proceeding.

Kitchen Information

This section has project information such as project name, price details, payment options, save and print project, share, publish on HomeByMe, and services for the project.

Project Name

To modify/edit the project name, click the project name displayed beside the image of the kitchen, as shown below:

Once the changes are done, press the Enter/Tab button or click outside the project name input field.
Click the Save button to save your project with updated project name.
By default the name of the project is saved as MY KITCHEN.

• If the project's name is empty, a warning message is displayed, as shown below:


Pricing Information

The total price of the kitchen is displayed in this section. This price includes VAT.

• Click (Information Icon) for pricing information.

Payment Options

You can opt for the payment option in between cash payment and monthly payment, at your convenience.

1. Cash Payment To select the cash payment option, click the below Proceed button, by default the cash payment option is selected for the project.

2. Monthly Payment Select the Monthly payment option, to pay the amount of the kitchen on the monthly basis and click the below Proceed button. To know more about the pricing details, click see details about finance and validate to opt for the payment mode.

Save and Print Project

⚙️ Set up: Application distribution parameter print 🔗. The Save & Print option is available in the application when the value of print is set to true.
The default value of the parameter is set to false.

• Click the icon to save the project, generate 2D plans and open the print panel.

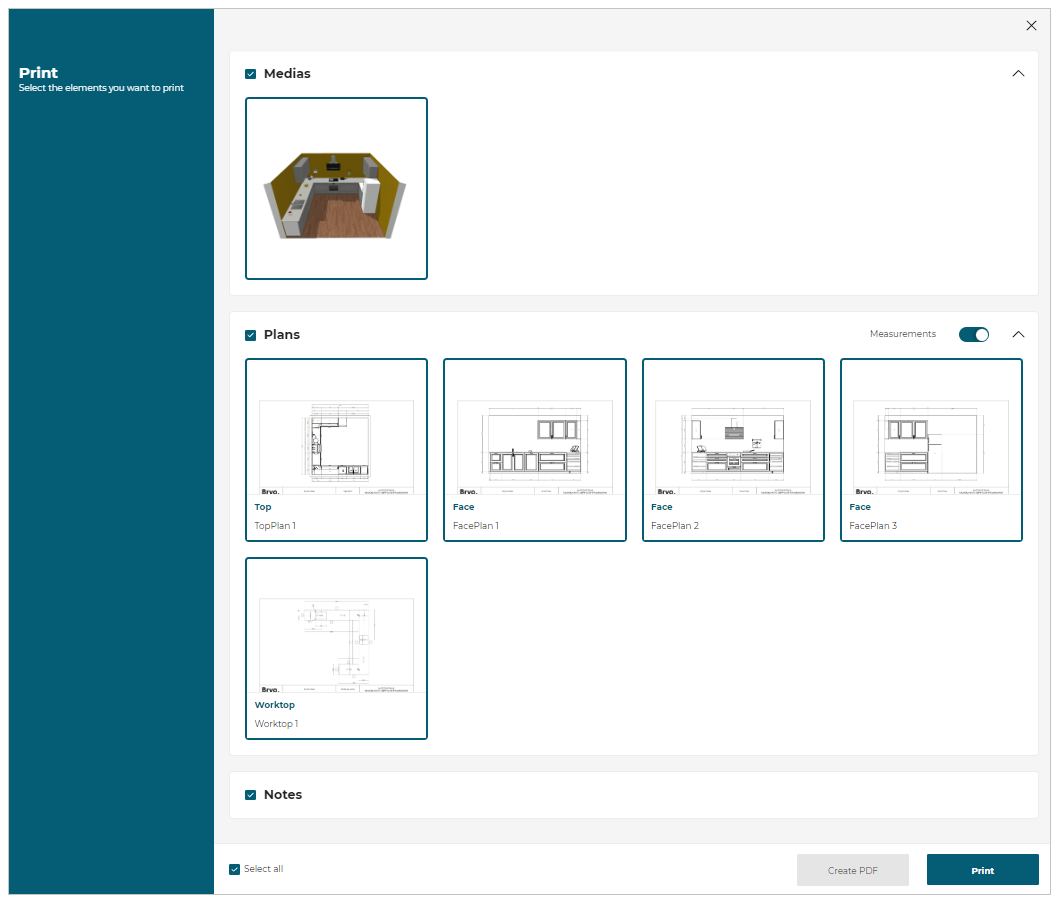

  The panel for selecting the Medias, Plans and Notes to print is displayed.

To print 2D plans, Images, and Notes, select the desired content, as shown below:

• Click the Create PDF to download in PDF format.

For more information, please refer Print widget🔗

• The Create PDF and Print options are only available when one of the Plans, Images, or Notes is selected.
• The Notes option is only available when there are notes associated with a project or item.
• To hide or show the measurements, click the Measurements button to toggle its visibility.
• To print all elements, click the Select all option.

Share

⚙️ Set up: Application distribution parameter shareProject🔗 and kitchen iframe message ShareProject🔗.
If the value of shareProject is set to null in the widgets, then the kitchen iframe ShareProject option is displayed.
If the value of shareProject is set to object **{"url": "https://www.retailername.com/project/{projectUUID}"}**, then the default widget is displayed.
The value of the shareProject is by default set to null in the widgets.

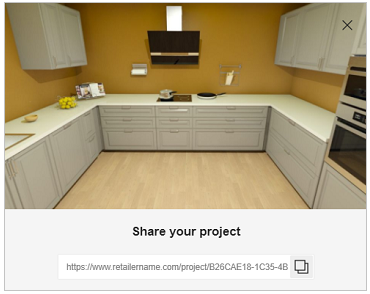

• Click the Share icon to share the URL of the current project, as shown below:

For more information, please refer Share Project Widget🔗

Publish on HomeByMe

You can publish your project on HomeByMe 🔗.

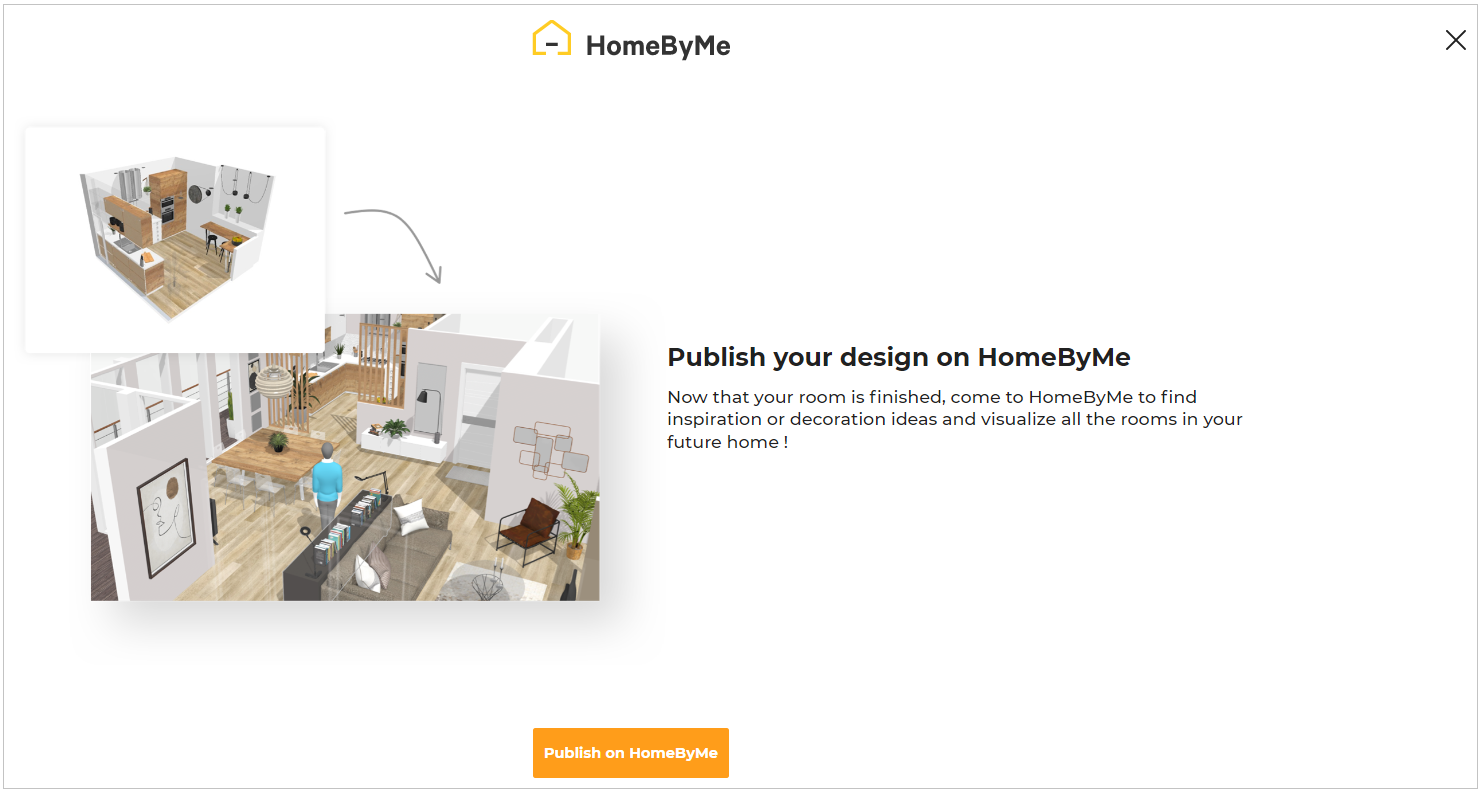

• Click Publish on the HomeByMe icon, the Publish on HomeByMe page appears, as shown below:

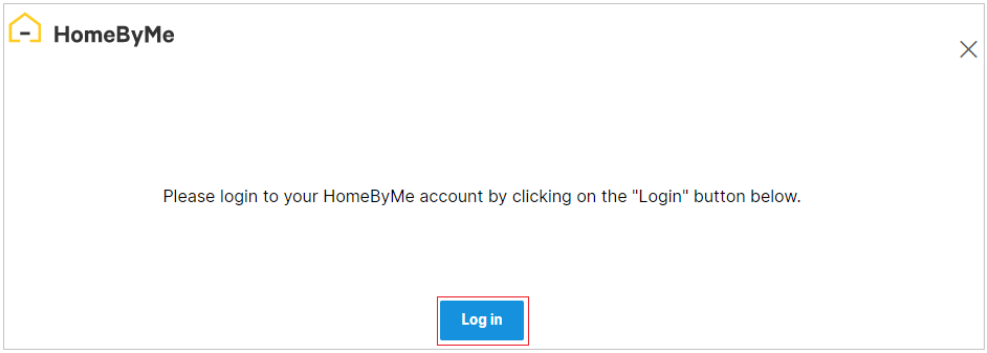

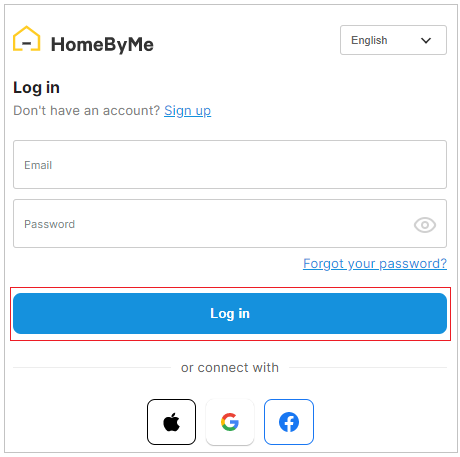

• Click the Publish on HomeByMe button, the login page appears.

• Click the Login button and enter your HomeByMe account credentials.
  After entering the credentials, HomeByMe is connected, and the project renaming option appears, as shown below:

• Click Confirm to continue with the name of the project.

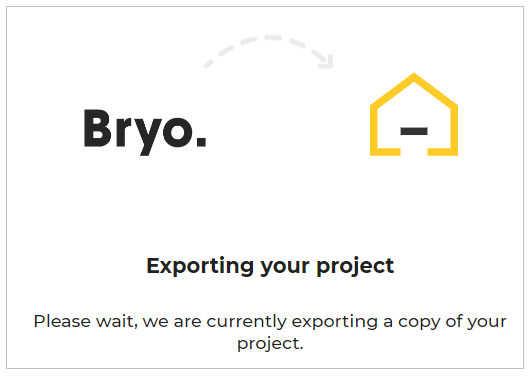

Exporting process begins, as shown below.
This might take some time.

A notification appears as shown below, confirming A copy your project was sent to HomeByMe, as shown below:

Description

This section displays the description of the project, mentioned in the Add a description of the My projects section.

Services

This section displays the estimated date and cost of Delivery services and Installation services of the project.

Final Check

This section informs about expired products, pending warnings and recommendations to be corrected in the current kitchen.

Click Go back to fix to replace the expired product, fix the errors, and obey the rules to make the project error free. Also, if an expired product is in the project, then the final price is not displayed, instead, the "price is not available" message is displayed. If there are no warnings or recommendations, the following message indicating that your design is error free is displayed.

Item Notes

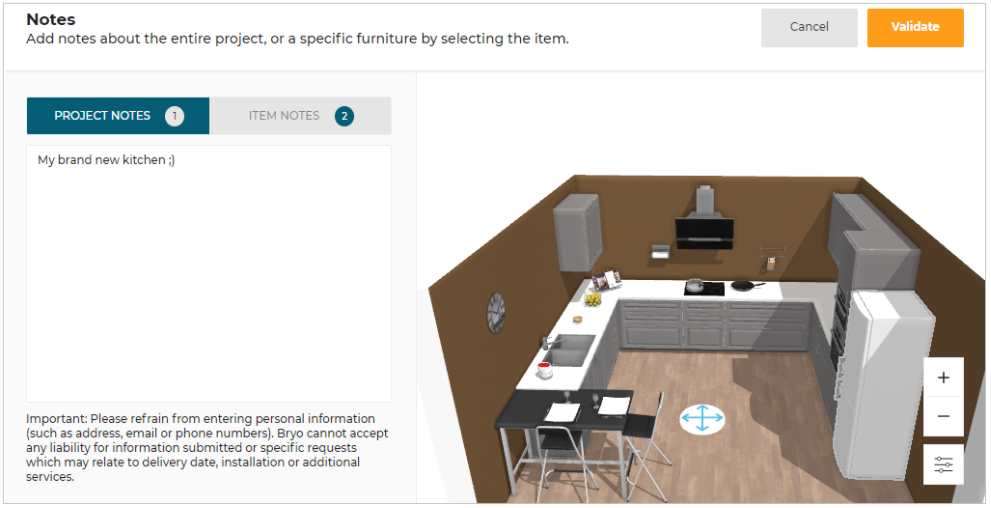

• Click the icon to see the notes mentioned for the project and items.

Item List

⚙️ Set up: Application distribution parameter itemList 🔗.
The Item List option is not available in the application when the value of itemList is set to false.

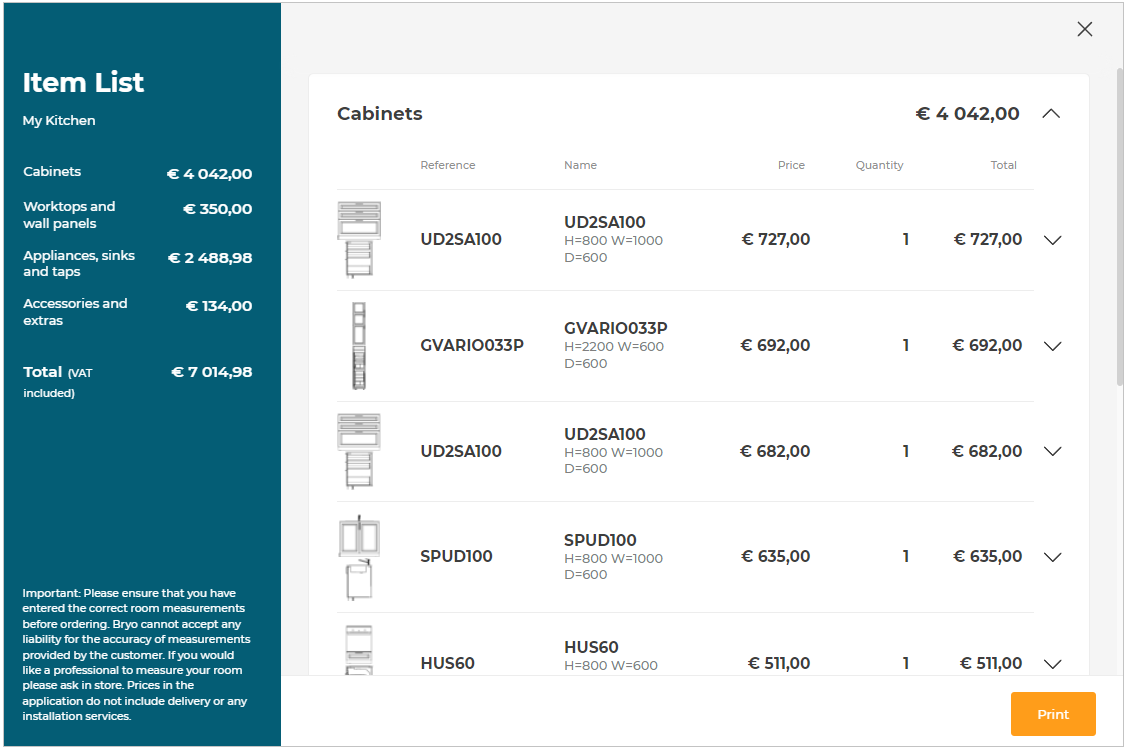

• Click the icon to see the list of items added to the kitchen.

Detailed item list along with their price and quantity is displayed.
The item list is segregated according to the type of item used in the project.

Click the downward arrow for detailed pricing of the item.
Click the upward arrow to hide the detailed pricing of the item.
Click Print to print the item list.

Save

• Click the icon, to save your project.

Images and 2D Plans

This section allows you to view Images and 2D Plans of the kitchen project.

⚙️ Set up: Application distribution parameter images2DPlans 🔗 and Images2DPlansRequested 🔗.
If the value of images2DPlans is not defined in the widgets, then the Images2DPlansRequested is displayed in the Images and 2D section.
If the value of images2DPlans is defined, then the default widget Medias is displayed.

For more information, please refer to Media Widget 🔗

⚙️ Set up: kitchen iframe message Compute2DPlans🔗.

• If the value of the parameter showFullIslandDimension in Compute2DPlans is set to true, then all the possible dimensions of the island position are displayed.
• If the value is set to false, then only one dimension of island cabinets position is displayed for each axis(the shortest one).

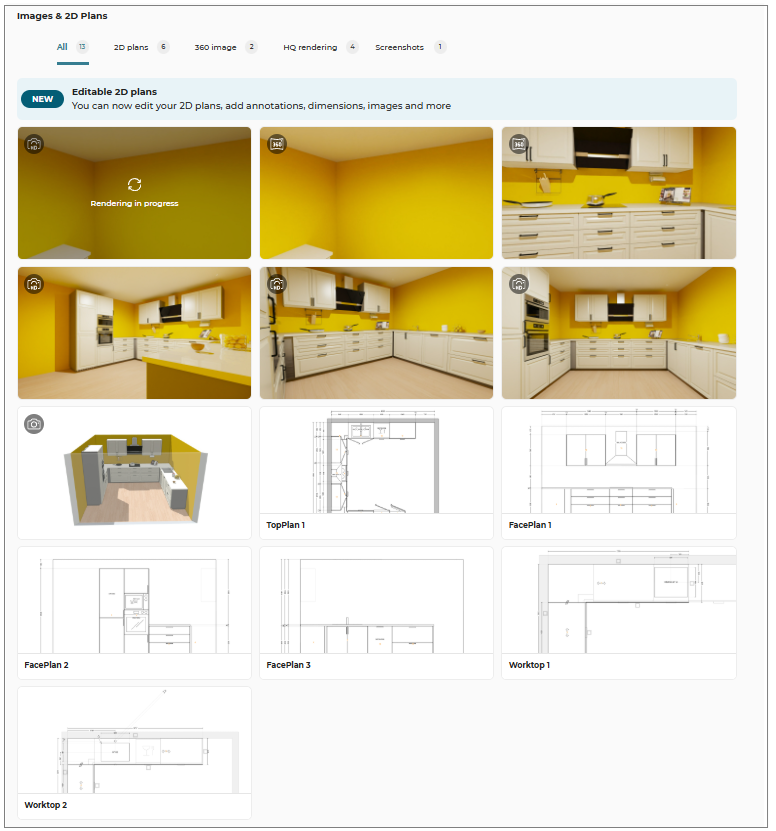

The Images and 2D Plans section is displayed, as shown below:

The total number of images and 2D plans are respectively displayed, as shown below:

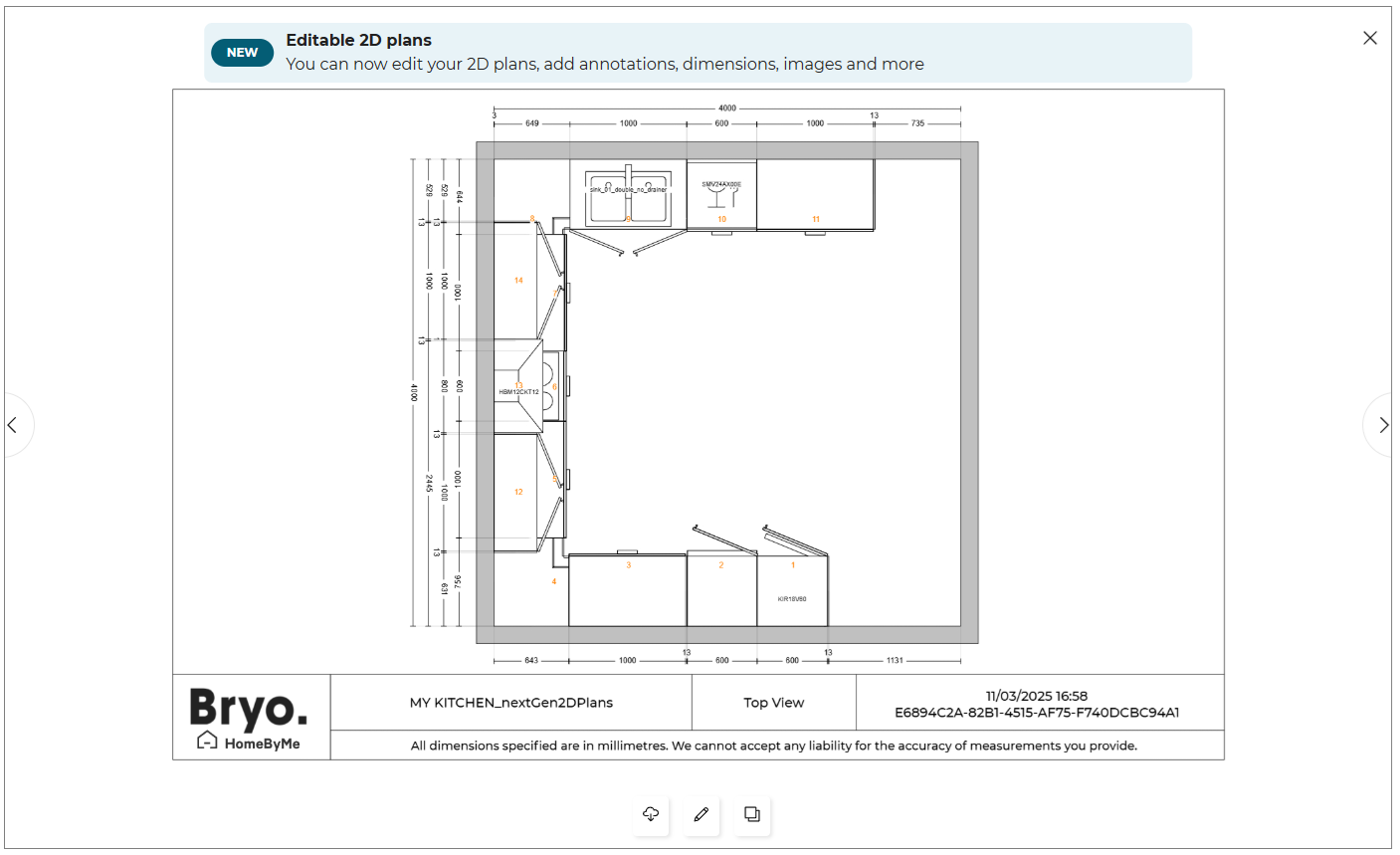

1. Click the image/2D plan to preview it, as shown below:
   You can preview the available 2D plans/ images of the project by clicking the previous/next arrow button.

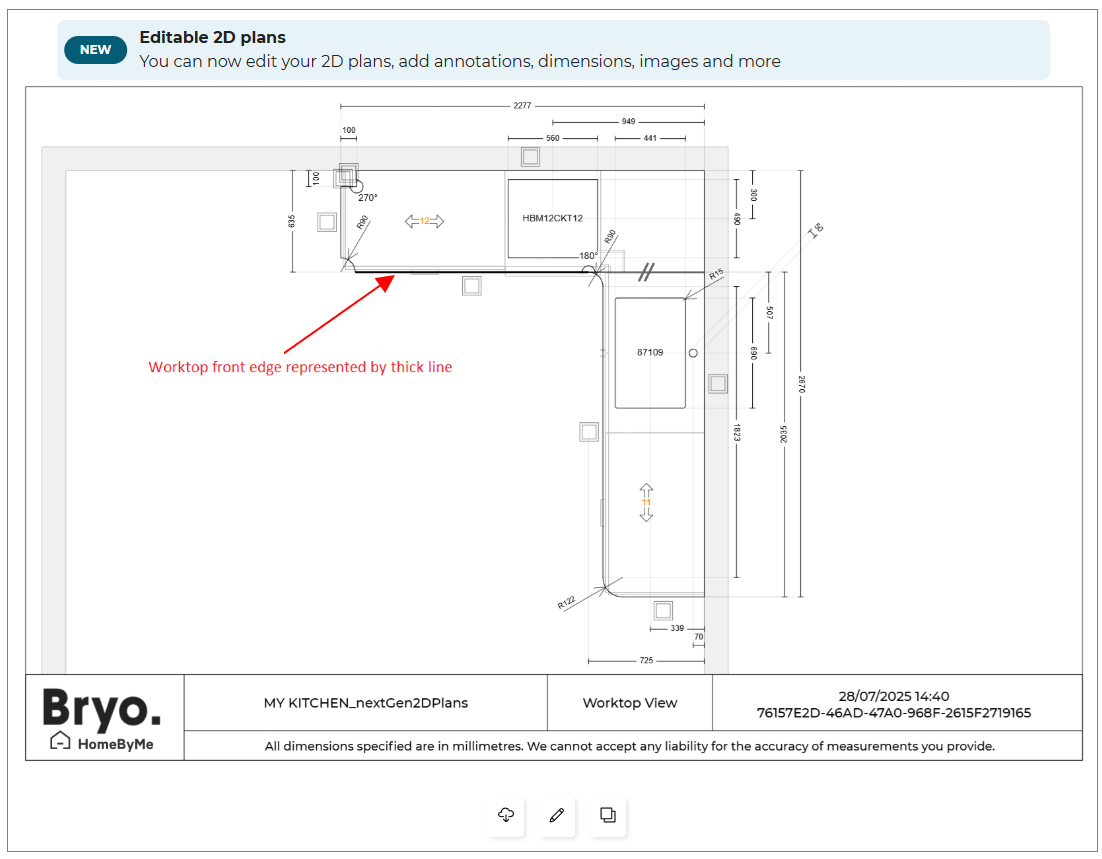

• In the 2D plan, a thick line represents the front edge of the worktop.

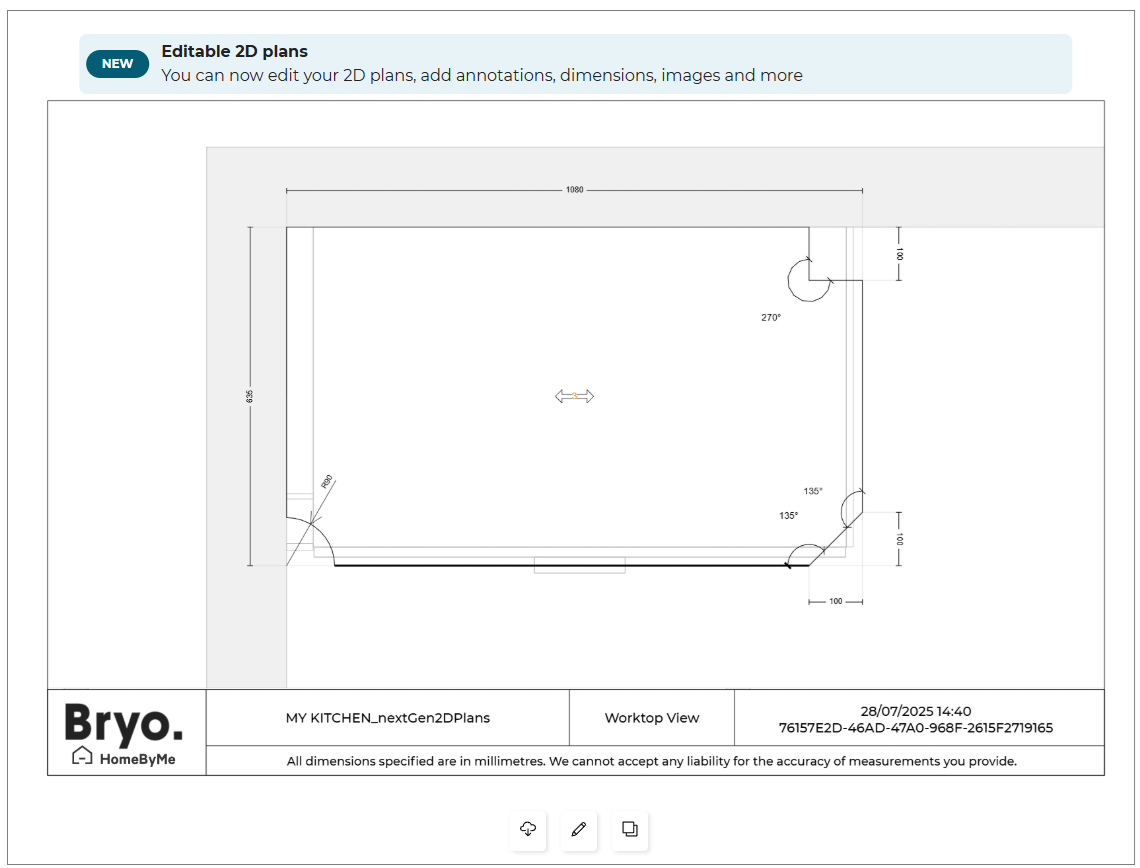

• If your worktop features an angle that is not 90°, a specific angle icon displayed, along with the correct angle value in the 2D plan.
• For worktops with 90° (perpendicular) angles, no specific angle icon is displayed.

❗ The feature to see worktop angles is only available in Kitchen Specialist offer. For more information and to subscribe to this offer, please read the dedicated section (available soon).

2. Click the Download button to download the 2D plans/ images.

⚙️ Set up: Application distribution parameter downloadImages 🔗.

• If the value of download2DPlans is set to true in the widgets, then the Download button for 2D plans is displayed.
• If the value of downloadImages is set to true in the widgets, then the Download button for Images is displayed.

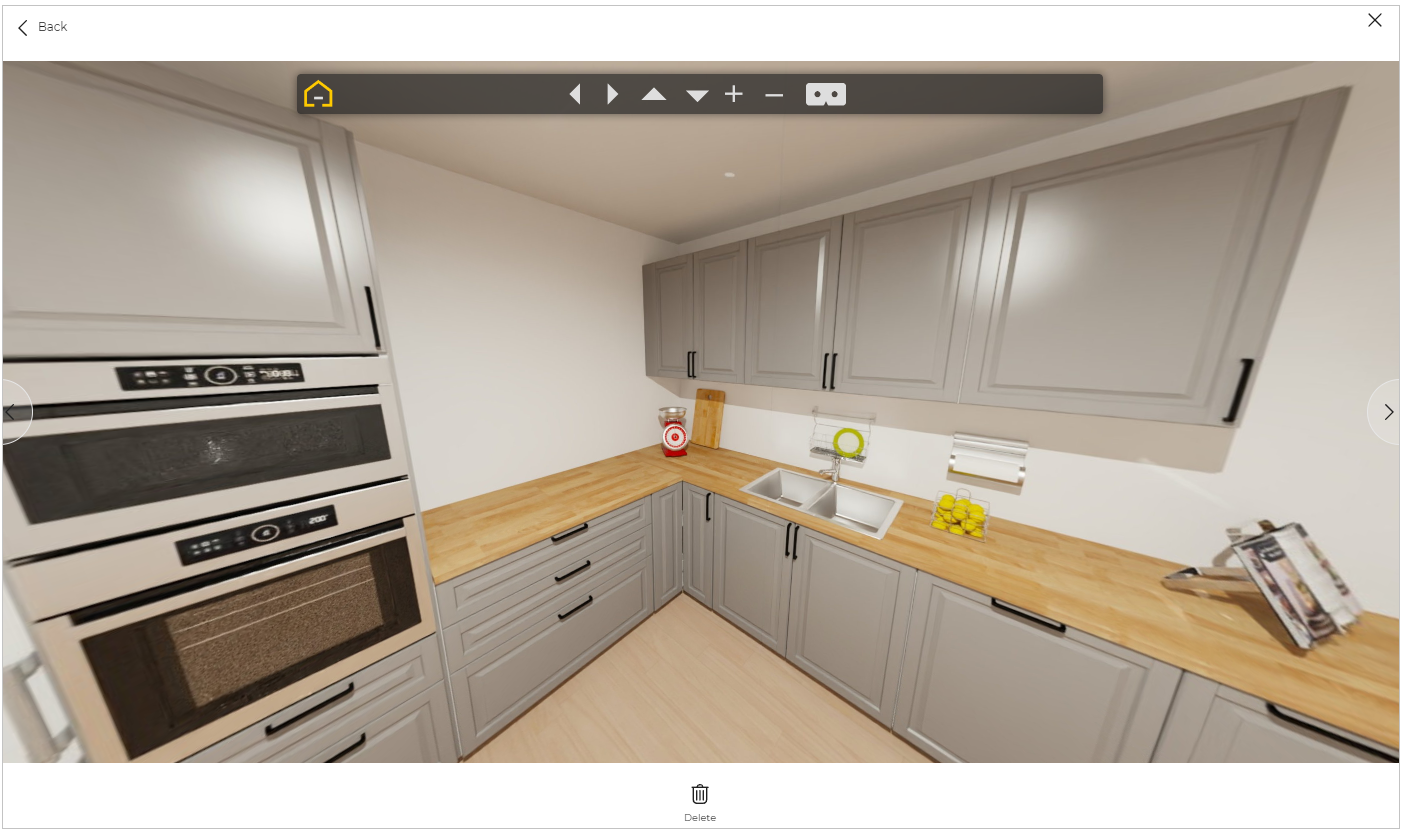

3. Select the 360° image and HQ image to preview the image, as shown below:

4. Click the Download button to download the image.

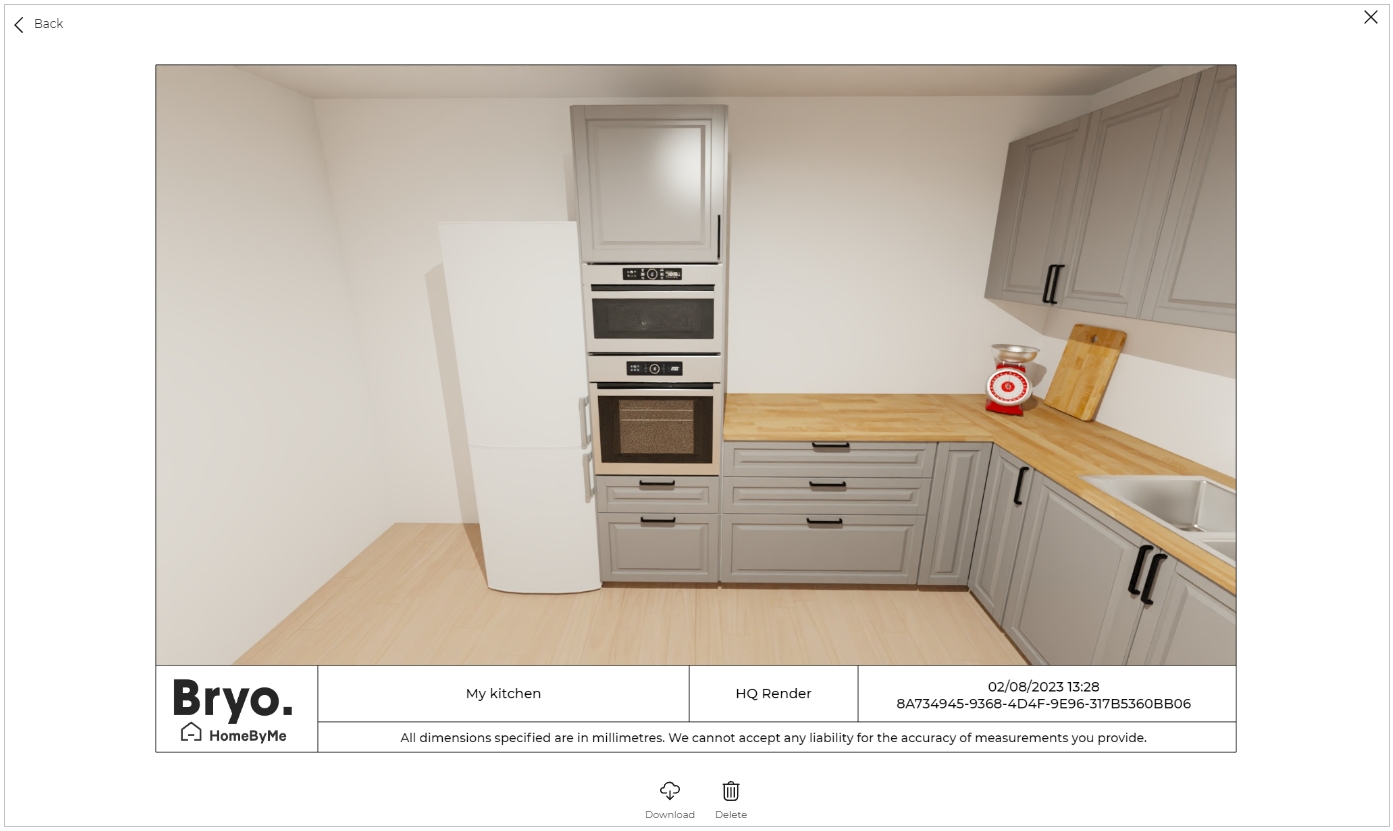

5. Click the Delete button. The confirmation pop-up is displayed, as shown below:

6. Click the Yes button to delete the image. The image has been removed from the media.

• The 2D plans are automatically generated according to the products available in the project, they cannot be deleted.

If you have not created any images, to create an image go to the Design your Kitchen step. For more information, see Create Image 🔗

The Rendering in progress message is displayed while the image is being rendered.

Edit 2D Plans

You can edit the 2D plans.

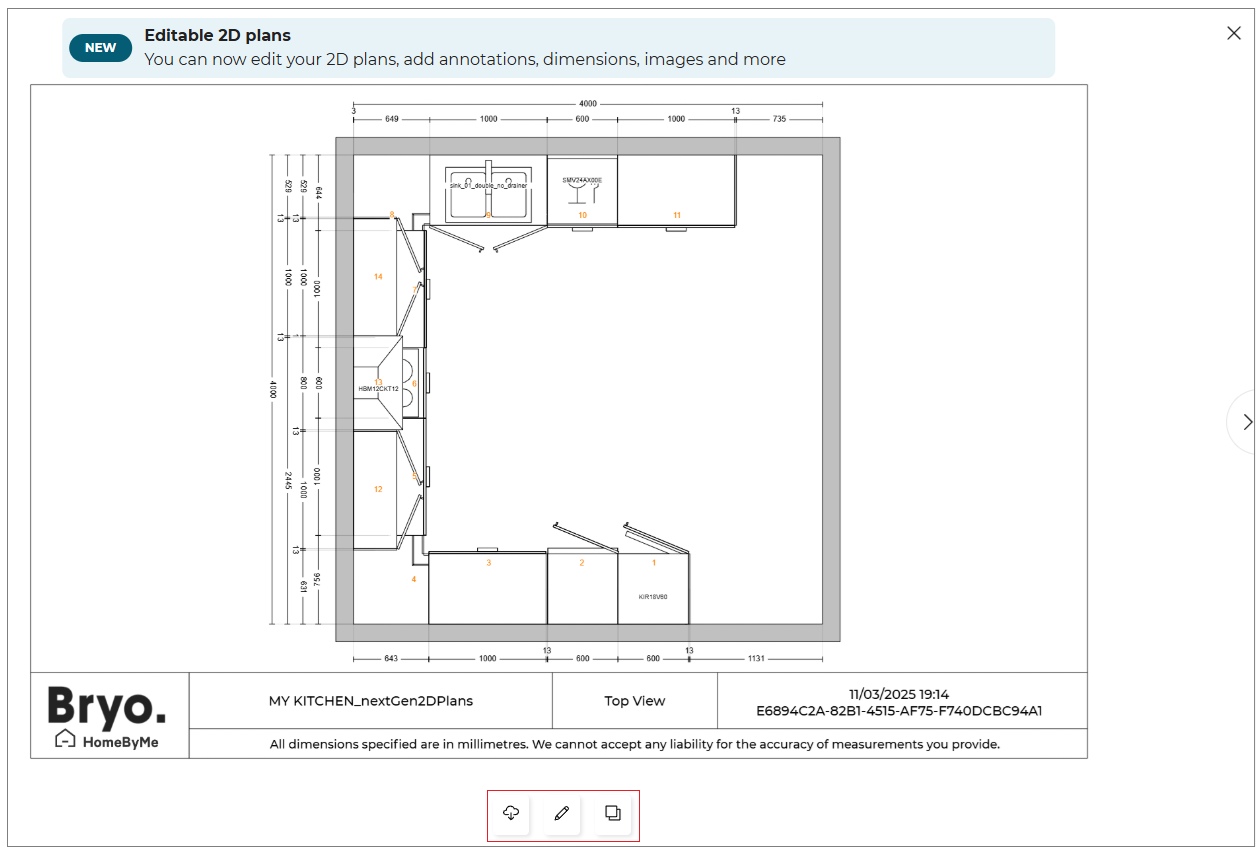

1. Select the 2D plan, the window to edit the 2D plan is displayed, as shown below:

2. Click the icon.
   The notification We are duplicating your 2D plan window is displayed, as shown below:

3. Select the Annotations options, to add the annotations to the plan.

4. Click the Validate button once the edit is done.

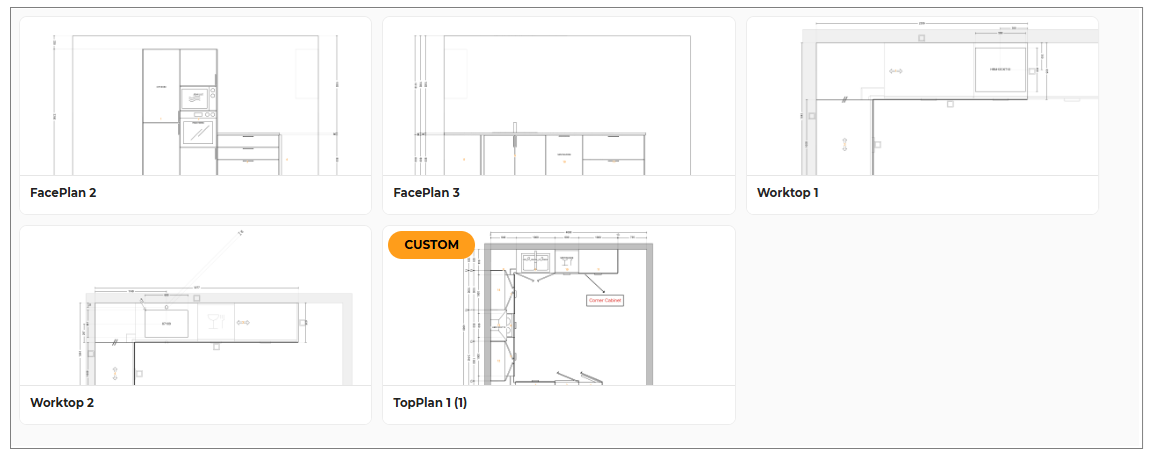

   A copy of the original 2D plan is generated with Custom name, as shown below:

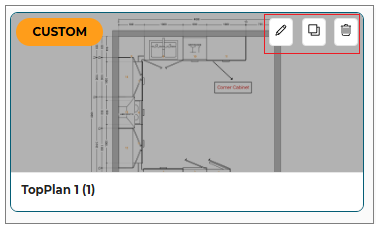

5. The Edit, Duplicate and Delete option is displayed when you hover the mouse cursor over 2D plan, as shown below:

6. Click the icon.

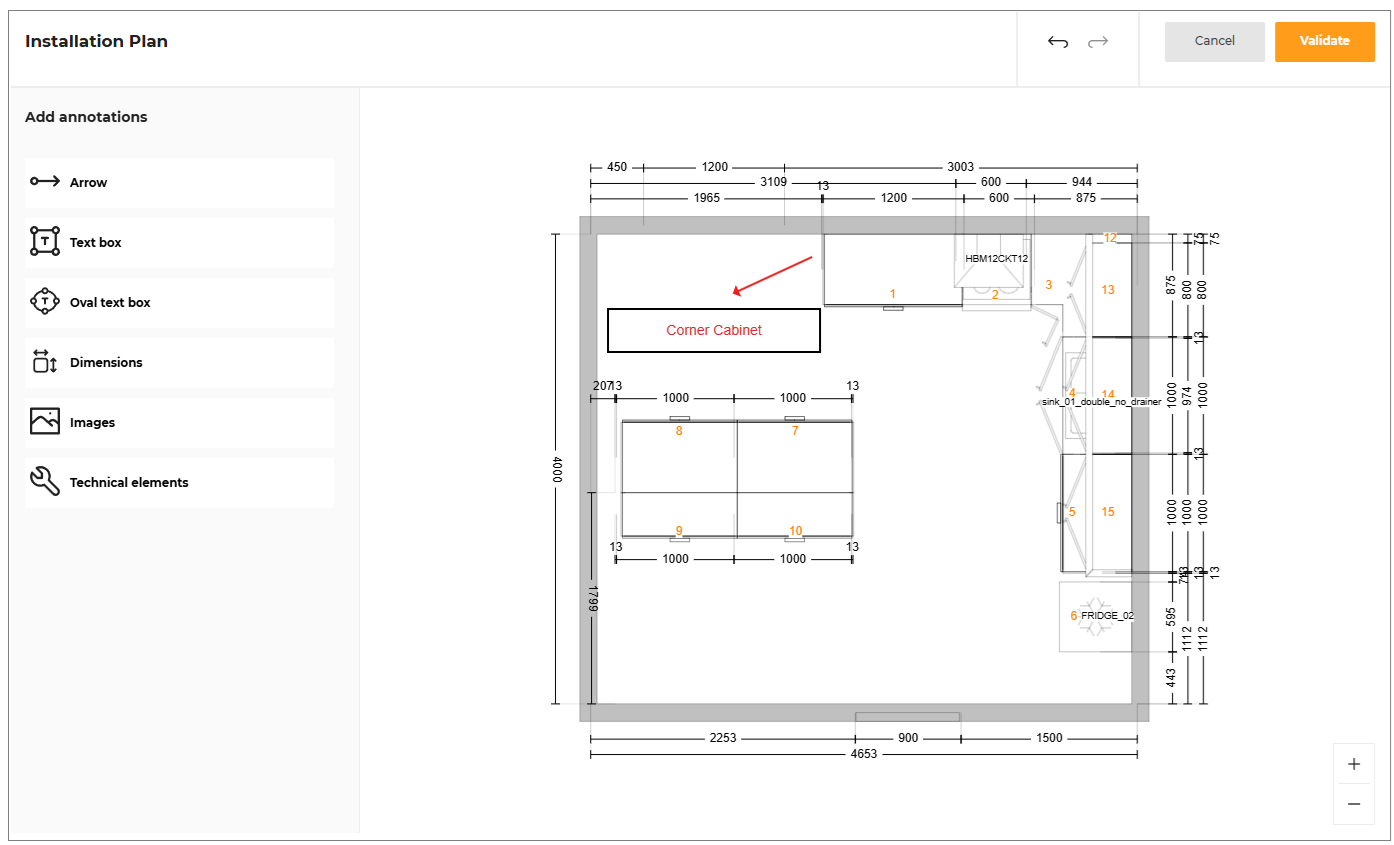

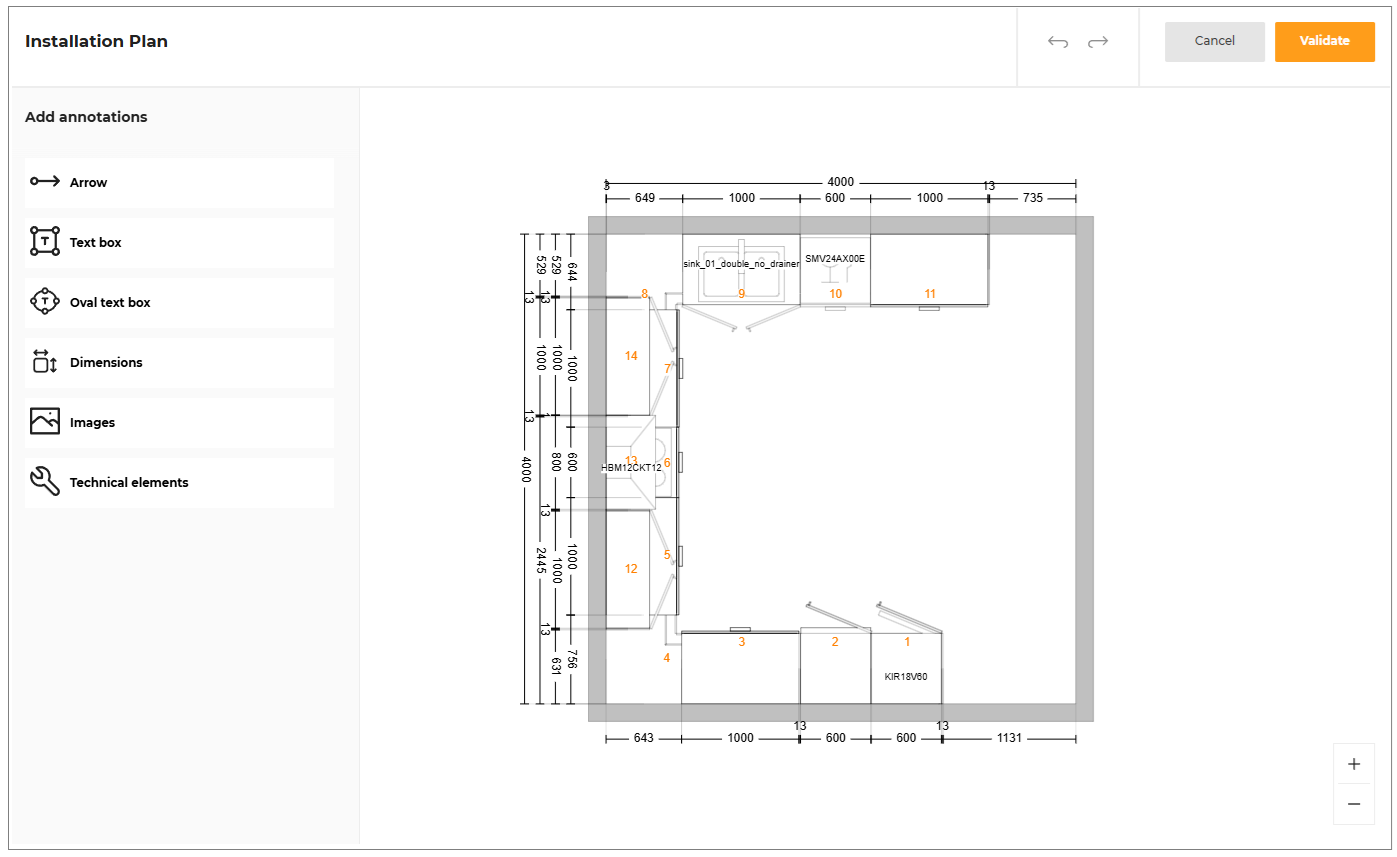

   The Installation plan edit window is displayed, as shown below:

7. Click the icon, to delete the custom plan.

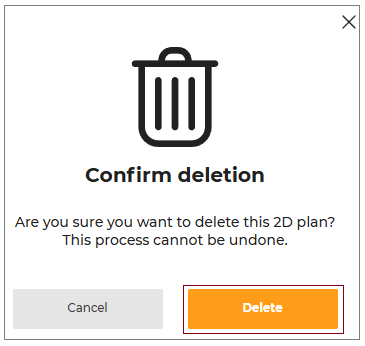

   The Confirm deletion window displayed, as shown below:

8. Click the Delete button to delete the custom plan.

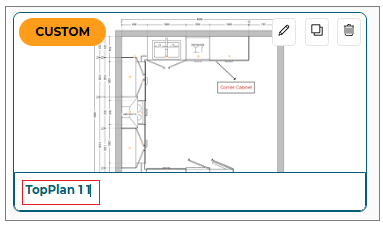

9. Click and select the name of the Custom 2D plan to modify the name, as shown below:

Show/Hide Annotation

You can customize the visibility of various elements within your installation plans to create a cleaner and more focused view. This feature allows you to show or hide specific elements such as cabinets, linear elements, dimensions, symbols, and annotations through a dedicated menu.

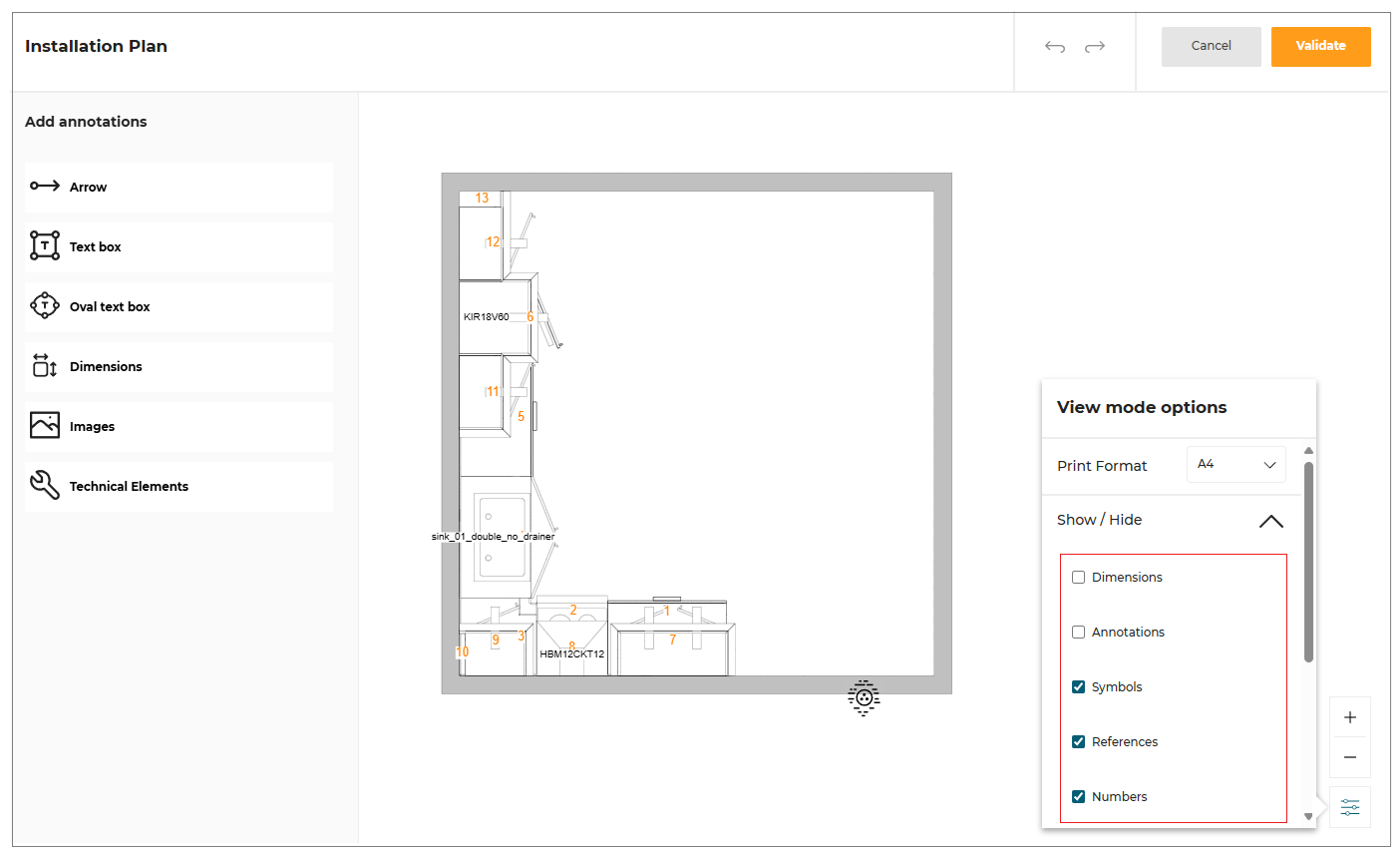

1. Click the View mode options button to open the menu for showing or hiding elements in the installation plans, as shown below:

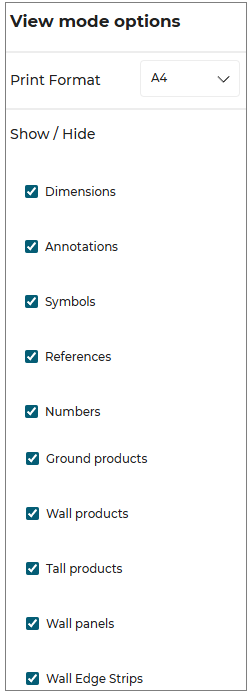

2. In the menu, you can select or deselect the elements you want to show or hide, as shown below:

Nomenclature

The product numbering and references, forming the complete product nomenclature, are detailed within the installation plans.

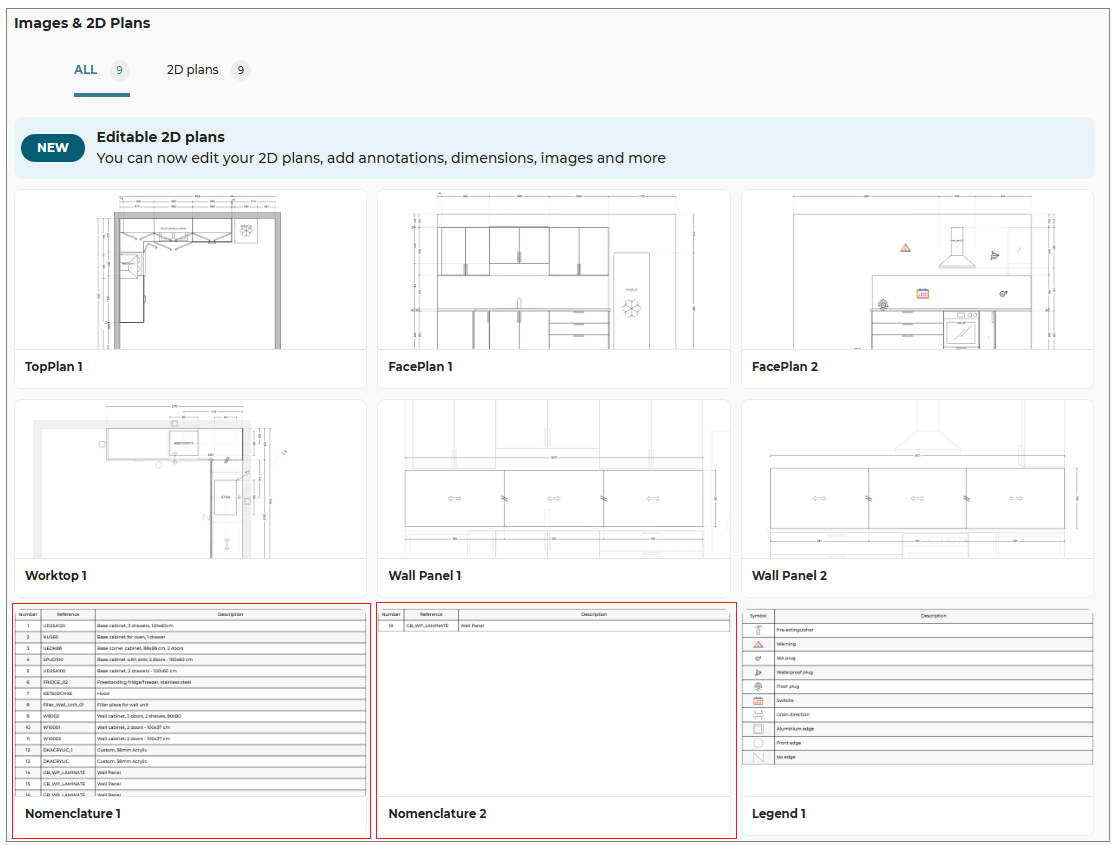

1. Select the Nomenclature from the 2D Plans, as shown below:

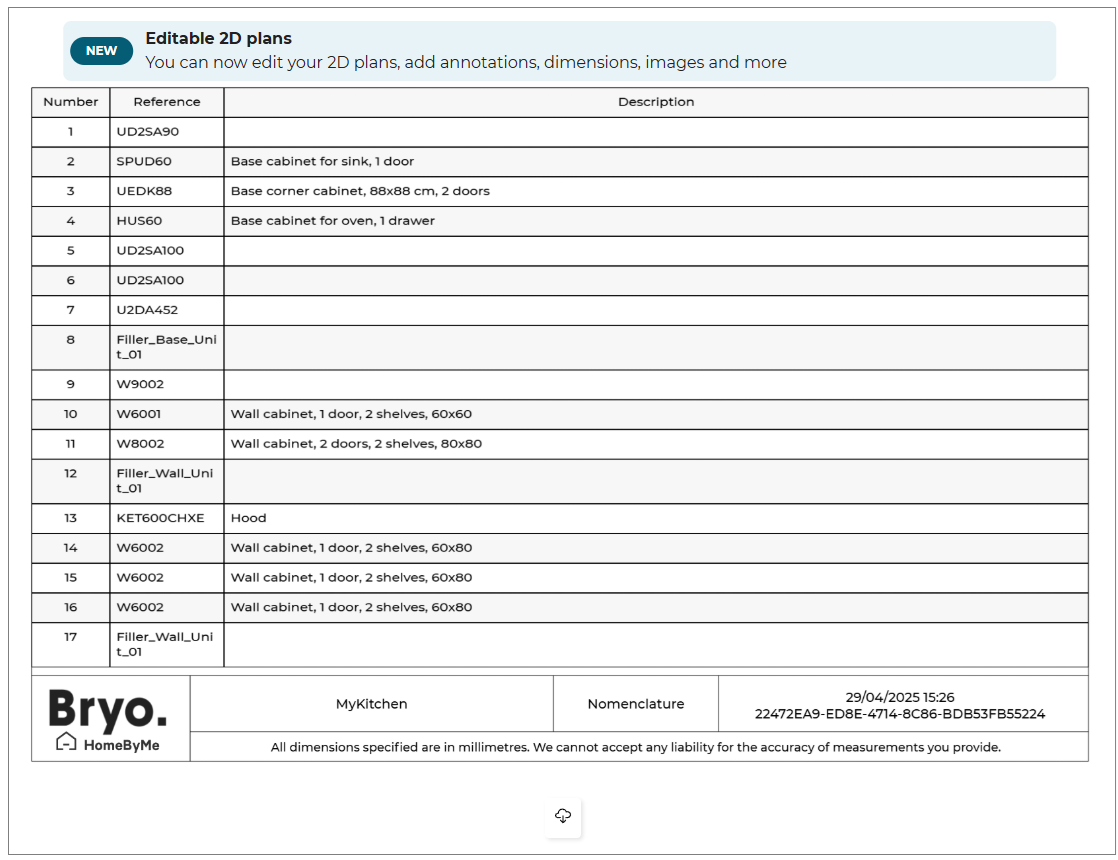

2. The detailed installation plans contain the complete product nomenclature, including numbering and references are displayed, as shown below:

3. Click the icon, to download the nomenclature.

Legends

If your 2D plans for worktops contain edge symbols (such as Front edge, Aluminium edge, No-edge, Bad-edge, etc.) and wall panels contain edge symbols (such as Glass edge non-polished or Glass edge polished) or grain direction, these symbols are displayed in the legend.
Additionally, if you add technical elements or symbols in your installation plans, you can view a legend of your symbols as a new media in the finalize step.

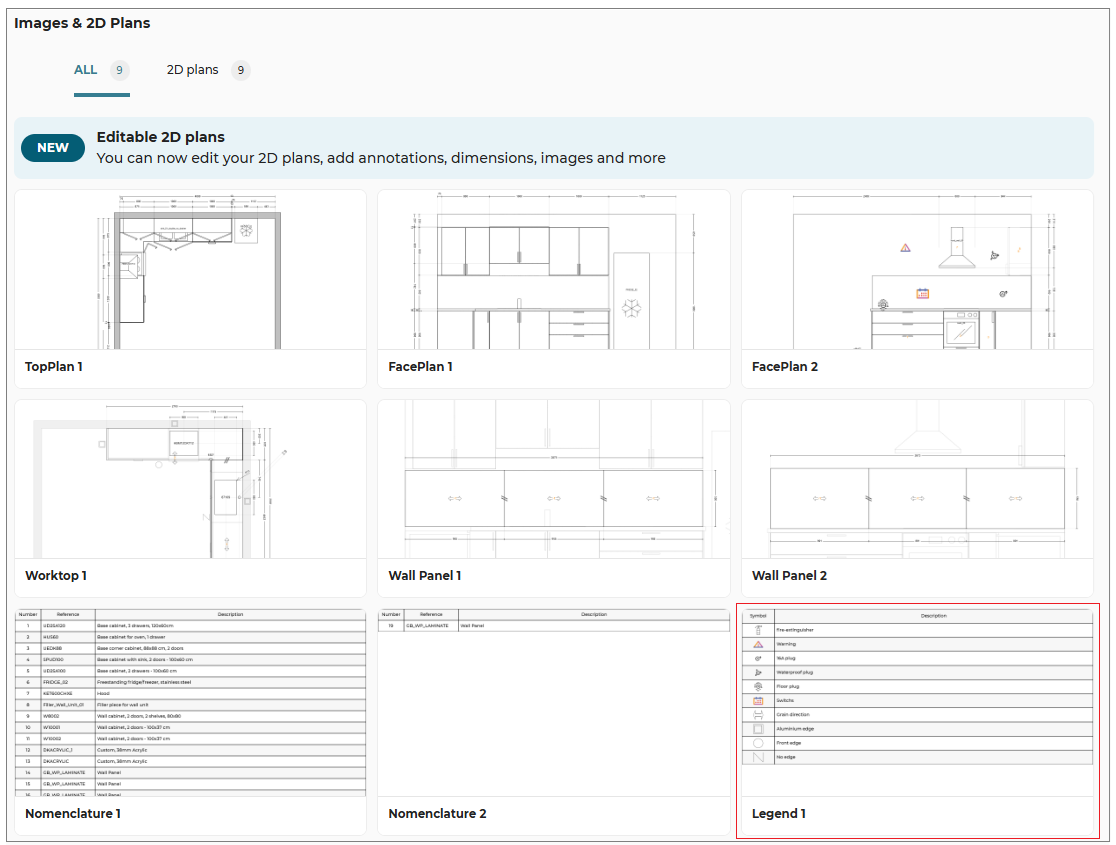

1. Select the Legends from the 2D Plans, as shown below:

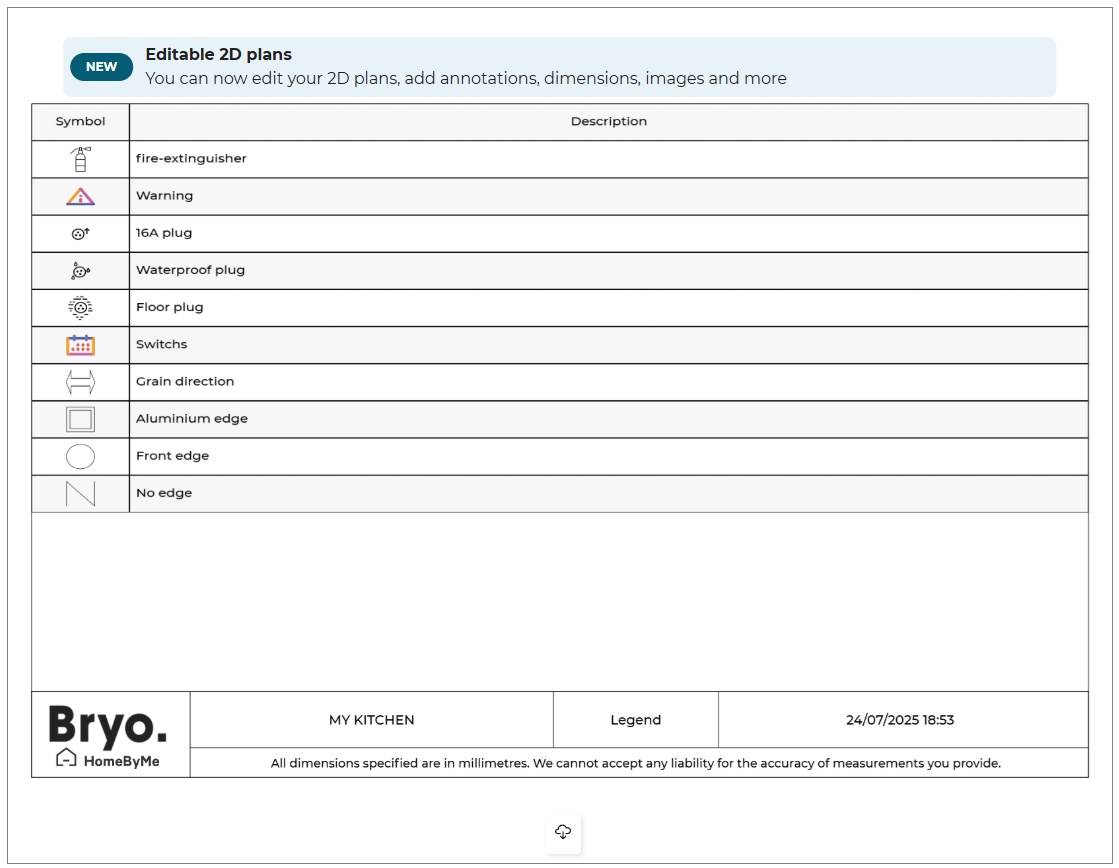

2. The detailed installation plans contain the legend symbol and its description is displayed, as shown below:

3. Click the icon, to download the legend.

Services

This Services option displays the custom information (like book an appointment, book home measure, request brochure, find a local store, etc).

To see the custom information, click the Discover our services.

Price Detail

To see the detailed price and quantity of the items in the project, click the Check your price.

Proceed

This is the final step to purchase the kitchen.

⚙️ Set up: Application distribution parameter rulePopin 🔗.

• Click the Proceed button for further processing.

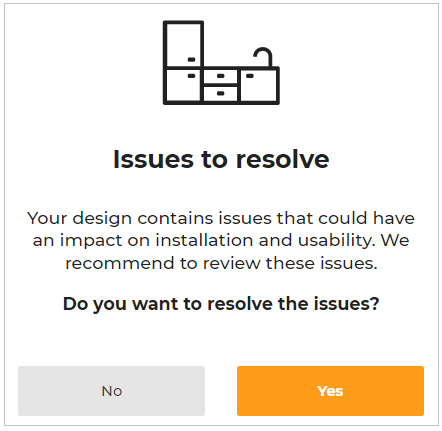

If the value of the parameter rulePopin is set to proceed, then the pop-in window informing Issues to resolve is displayed, as shown below.

• Click the Yes button to go back to Design your kitchen and resolve the issues or,

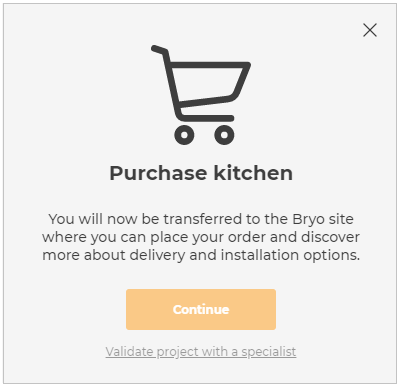

  Select the No button to continue. A notification appears, as shown below:

• Click Continue to complete the purchase.
• Click Validate project with a specialist mentioned in the notification above, for further consultancy with a kitchen specialist.
