Design Your Kitchen

This is the third step in the application. Modifications in the design of the kitchen layout, or to start designing from scratch is done here.
This step helps in designing the kitchen by browsing catalog and adding new products, editing products, deleting products and pricing of products.



Adding Products

Cabinets: Adds cabinets to the kitchen, and helps in editing cabinets of the kitchen.

Appliances: Adds appliances like cooktop, dishwasher, fridge, ovens, and sinks.

Dining: Adds dining accessories to the kitchen.

Kitchen Extras(accessories): Adds kitchen extras(accessories) to the kitchen.
After adding the objects, you can move and place the objects on the wall (like the clock) or on the top of other products (like a flower on the cabinet/table).

Favorites: You can create lists of your favorite products. The availability of this feature is controlled by the application distribution parameter. See Favorites for more details.

Search: This feature helps in searching a particular product and adding it to the kitchen.
A product can be searched by entering its type, reference, color, material and so.

Filter List
In the filter list, you can change the order.

⚙️ Set up: Application distribution parameter sortStringFilter🔗 and sortNumericFilter🔗
⚙️ Set up: Application distribution parameter sortBy🔗 and filters🔗

• If the value of the parameter sortStringFilter is set to asc, then the sorting of the filters is in alphabetical order in the catalog, as shown below:
  The default value of the parameter is set to desc.

• If the value of the parameter sortNumericFilter is set to asc, then the sorting of the filter is in ascending order in the catalog, as shown below:
  The default value of the parameter is set to desc.

After adding a product from the catalog, the product remains in the selected state, so that the manipulator options (like Elevate, Move, Rotate, etc) can be used. Also, the editing toolbar (like Edit, Zoom To, Position, Duplicate and Delete) appears for the inserted product on closing the catalog browser.

The user can insert as many products as they want until there is no more space in the room. When there is no space available, a popin is displayed in order to inform the user that there is no space available in the current room.

Note:
If there is no space available, the product is still inserted in the center of the room automatically. The user will therefore have to position these products one by one manually.

---

Product Information

The Product information such as product name, product dimensions, and similar products list is displayed in the product sheet pop-in window.
The Default Widget or ByMeAPI.UI.ProductSheet, or product sheet generated using SpecialProductInfoRequested iframe message for the product information is displayed depending on the application distribution settings.

• To open the product information window, click the product information icon.

⚙️ Set up: Application distribution parameter productinfobyiframe 🔗, productSheet 🔗 and SpecialProductInfoRequested 🔗

• Below are the parameters set in the Application distribution parameter to display the product information sheet:

1. If the value of productinfobyiframe is set to true, then the product sheet developed using SpecialProductInfoRequested iframe message is displayed.

2. If the value of productinfobyiframe is set to false and productSheet in the standard module to true, then the default widget is displayed for the product information.
   To add the product from the product sheet, click the Add in project option, as shown below:

For more information, please refer to Product Sheet Widget 🔗

3. If the value of productinfobyiframe and productSheet in the standardModule to false, then the product information sheet is displayed using the ByMeAPI.UI.ProductSheet

---

Editing Products

Worktop: Worktop can be edited in worktop editor according to the user requirement.

Wall Panel: Wall panel can be added to the kitchen and cabinets, and also be edited in wall panel editor.

Wall Edge Strip: Wall Edge Strip can be added to the cabinets, and can be edited in wall edge strip editor.

Multiple Product Selection:
To select multiple products press Ctrl button and select products. After selecting multiple products, you can perform following operations:
- Move the products using manipulators.
- Duplicate: Duplicate the multiple products selected. The orientation of the duplicate product is consistent with the existing product.
- Delete: Deletes the multiple products selected.
- Edit: You can edit multiple products simultaneously if the selected products shares the parameter to edit.

- Position:

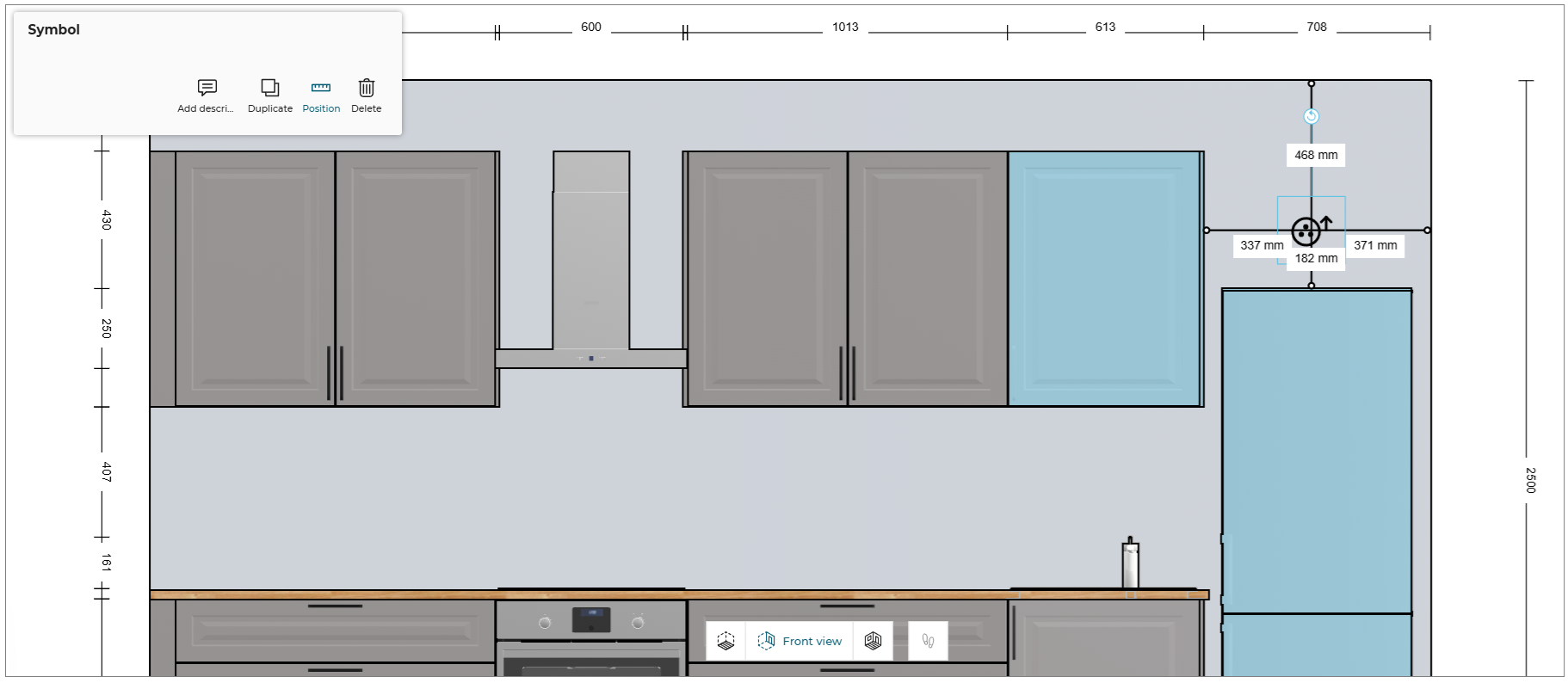

The Position option allows you to check the distance of the selected product from other products and walls in the planner and modify it accordingly.

• Click the Position icon.
  When using the Position option for the first time, the window showing message Edit the measurements to change the position of the item pop in, as shown below:

To hide the tooltip window, click Hide option or click outside the tooltip window.

To edit the distance:

• Click the value of the measurement to modify the distance as required, as shown below:

If you modify the position value more than 10000 mm, the popup warning message for confirmation is displayed, as shown below:

---

Navigation Panel

You can switch the room view to Floor view, Front view, 3D view, or First person view.

Floor view:

• Click the icon in the navigation panel. The floor view is displayed, as shown below:

3D view:

• Click the icon in the navigation panel. The 3D view is displayed, as shown below:

Front view:

• Click the icon in the navigation panel. The front view is displayed, as shown below:

You can select and edit the products in front view, as shown below:

• Toggle ON the Display colour from the view mode options, the colour in front view is displayed, as shown below:

While dragging the products in front view, the snap line is displayed, as shown below:

The Front view option is disabled in 2D view and becomes active only when switched to 3D view.

First person view

• Click the icon in the navigation panel. The First person view is displayed, as shown below:

The First person view option is disabled in 2D view and becomes active only when switched to 3D view.

Annotations

You can add the annotations in front/floor view for the products in the planner.

1. Click the icon, the options to add the annotations are displayed, as shown below:

2. Click the icon, to select the Linear arrow option.
   To add the linear arrow click in the planner, as shown below:

You can shape the arrow by selecting the points of the linear arrow.

3. Click the Edit button, the options to edit the linear arrow are displayed, as shown below:

4. Click the icon, to add the annotation text.
   To add the annotation text click in the planner, as shown below:

5. Click the Edit button, the options to edit the text and text box are displayed, as shown below:

6. Click the icon, to select the Oval Annotations Box option.
   To add the oval annotation box click in the planner, as shown below:

You can shape the oval annotation box by selecting the points of the box.

Images

You can upload the images in front/floor view in the planner.

1. Click the icon to upload the image file.
   The uploaded image is displayed, as shown below:

You can shape the image by selecting the points of the image.

2. Click the Edit button, the options to edit the image are displayed, as shown below:

• You can upload the images in .png, .jpeg, or jpg file format.
• The Save your project window appears if the project is not already saved.

Technical elements

You can add the symbols of the technical elements to the products in the planner.

1. Click the icon, to add the technical element symbol.
   The technical element symbol catalog is displayed, as shown below:

2. Select the required symbol from the catalog and click in the planner, as shown below:

3. Click the Add description option to add the description to the symbol, as shown below:

Display Annotations

You can hide/show the annotations in Floor view.

1. Click the icon, the View mode options is displayed, as shown below:

2. Toggle ON/OFF the Display annotations option to hide/show the annotations.

The Display annotations otpions is available for the Floor view only.

Editing Multiple Products

⚙️ Set up: Application rules parameter MatchingProductsRule 🔗

The Edit option is displayed only if the multiple selected products shares atleast one parameter (for example - Drawer Front, Handle etc).
To edit the parameter of multiple products, select the products & click Edit to open the edit panel.

Case 1: Selected products shares parameter as well as its value.
The parameter, name & thumbnail of its value & relevant buttons like Replace, Options, Delete will be displayed for editing the parameter value.

Case 2: Selected products shares the same parameters but not it's value.
The parameter, its value as "Multiple settings" & relevant buttons like Replace, Options, delete etc. will be displayed for editing the parameter value.

• For text value, once the possible value from 'Multiple values' option is selected, the 'Multiple values' option will not be displayed.
• For 'Multiple settings' value, the toggle button will be in the middle. You can set it to left or right.

Case 3 : Selected products shares the same parameter but the value for one of the product is not set.
In the below example, the selected product shares the parameter "Drawer Light" but the drawer light is added with wall cabinet only and not with the corner cabinet, so in this case the "Drawer Light" parameter is not displayed in Edit menu.

• While adding or replacing any parameter value, the catalog displays list of products that is union of sets of products applicable to all the selected products.
• when selecting multiple products having different settings then the several products will be outlined in the catalog.

• While editing a parameter of multiple products, if the possible value of one or more products differs then the following warning message will be displayed.


---

Replacing with multiple cabinets

You can replace single cabinet with multiple cabinets.
To replace the cabinet:

1. Select the cabinet, the edit panel is displayed, as shown below:

2. Click the Replace button from the edit panel, the catalog with available products is displayed, as shown below:

3. Select the multiple cabinets you want to replace by clicking the Choose button. The available combinations is displayed.

4. Choose the combination as per the requirement and select 1st and 2nd cabinets, as shown below:

5. Click the Validate button to continue.

---

Expired Product

If your project consists of expired product, you can replace or delete the product.

• Click the icon, the Help center is displayed, as shown below:

To locate the expired product in the project, click the Show in 3D option, the product is displayed, as shown below:

• To replace the expired product:

1. Click the Replace button.
   The Replace an expired product pop-up is displayed, as shown below:

2. Select the Yes option, to replace the product.

If there is no replacement possible for the expired product, the Price is not available is displayed for project price.

• To delete the expired product:

1. Click the Delete button.
   The confirmation pop-up message to delete the expired product is displayed, as shown below:

2. Select the Yes option, to delete the expired product.

Ungroup Product Set

You can ungroup a grouped set of products, to Edit, Position, Replace, Duplicate, or Delete the products separately.

To Ungroup the set of products:

1. Click the product set, to open the property panel, as shown below:

2. Select the Ungroup option from the panel, to ungroup the set of products.
   A popup message to notify Products have been ungrouped appears, once the product set is ungrouped.

Once the product set is ungrouped, you cannot group the products except Undo ungroup operation.

---

Deleting Products

You can delete all the products from the room at once.

1. In step 3, select the floor where you want the products to be deleted.
   The pop-up window appears, as shown below:

2. Click the Empty button, a notification for confirmation appears, as shown below:

3. Click the Yes option to continue.

You can undo the action by clicking the Undo button.

---

Pricing of Products

⚙️ Set up: Application distribution parameters assemblyCatalogPrice 🔗 and nonAssemblyCatalogPrice 🔗

• If the values of assemblyCatalogPrice is set to False, then the price of the product is not displayed in the product catalog, as shown below:
  The default values of the parameter is set to True.



• If the values of nonAssemblyCatalogPrice is set to False, then the price of the product is not displayed in the product catalog, as shown below:
  The default values of the parameter is set to True.



Product Pricing:
On browsing catalog, different products have different prices associated with them.
See Pick a Layout for more information about pricing structure.

Eco-fee Pricing:
Eco-fees, or environmental handling fees, are used to finance the recovery and recycling of regulated products at the end of their life cycle.
If a customer buys an eco-fee product and returns it according to the applicable policy, the eco-fee will be refunded for the product to the customer.
Eco-fees is a part of the total price of the product. Hence, it is not added separately in the pricing structure.
However, eco-fees is diplayed along with the total price of the recyclable product, as shown below.

Eco-fee can be added to recyclable products as well as electrical equipments, electronic equipments.
For electrical and electronic equipments, DEEE is mentioned.
DEEE/WEEE stands for Waste Electrical and Electronic Equipment.
Examples of DEEE/WEEE products are dishwasher, washer, fridge and so.

Click eco-fee for eco-fee information. Details on eco-fee appear.

⚙️ Set up: Application distribution parameter ecoFee 🔗

• Below are the parameters set in the Application distribution parameter to display the product Eco Fee sheet:

1. If the value of productinfobyiframe is set to true, then the Eco Fee information sheet developed using SpecialProductInfoRequested iframe message is displayed.

2. If the value of productinfobyiframe is set to false and ecoFee in the standard module to true, then the default widget is displayed for the Eco Fee information.
   For more information, please refer to Eco Fee Widget 🔗

3. If the value of productinfobyiframe and ecoFee in the standardModule to false, then the Eco Fee information sheet is displayed using the ByMeAPI.UI.ProductSheet

Calculation of eco-fee price

⚙️ Set up: Application rules parameter ecoFee 🔗

The eco-fee price is displayed based on the computed weight of a linear using linear weight or surface weight.

1. For Worktops and Wallpanels: The eco-fee price is calculated based on the weight per surface area of the product set as surfaceWeight for the product.

2. For Linear products: The eco-fee price is calculated based on the weight per length for (Plinths, Wall edge strip, Cornices, and Deco-strips) set as linearWeight for the product.
   For more information, please refer to EcoFee Reference 🔗

Illustration Products:
These products are examples of useful kitchen products and can be used only for visual purpose.
You can add and use these products for designing kitchen in the application.

Illustration products can be an entire product or a part of product.
Example: Chairs, worktops, wall panels.
"Illustration purpose only" is labelled in the catalog, for such products, as shown below.

Since, Illustration products can be used only for visual purpose, they do not have a price. Hence, they are not added in the pricing structure, as shown below.

Note:
If any Illustration product has a price to it, then the "Illustration purpose only" label will not be visible.
The price of the product will be visible and will be added to the total price of the kitchen.
Illustration product label and price cannot be displayed at the same time for a product.

External price

⚙️ Set up: Application distribution parameter externalPrice🔗 and kitchen iframe message ExternalPriceRequested🔗.
If the value of externalPrice is set to true , then the kitchen iframe ExternalPriceRequested option is displayed.
The value of the externalPrice is by default set to false.

Error free design

⚙️ Set up: Application distribution parameter rulePopin 🔗.

If the value of the parameter rulePopin is set to designDone, then after clicking the Next button or switching the step from Design your kicthen to Summary, the pop-up window informing Issues to resolve is displayed, as shown below.

Click the *Yes button to open the help center to resolve the issues or,
Select the No button to continue to Summary step.

---
